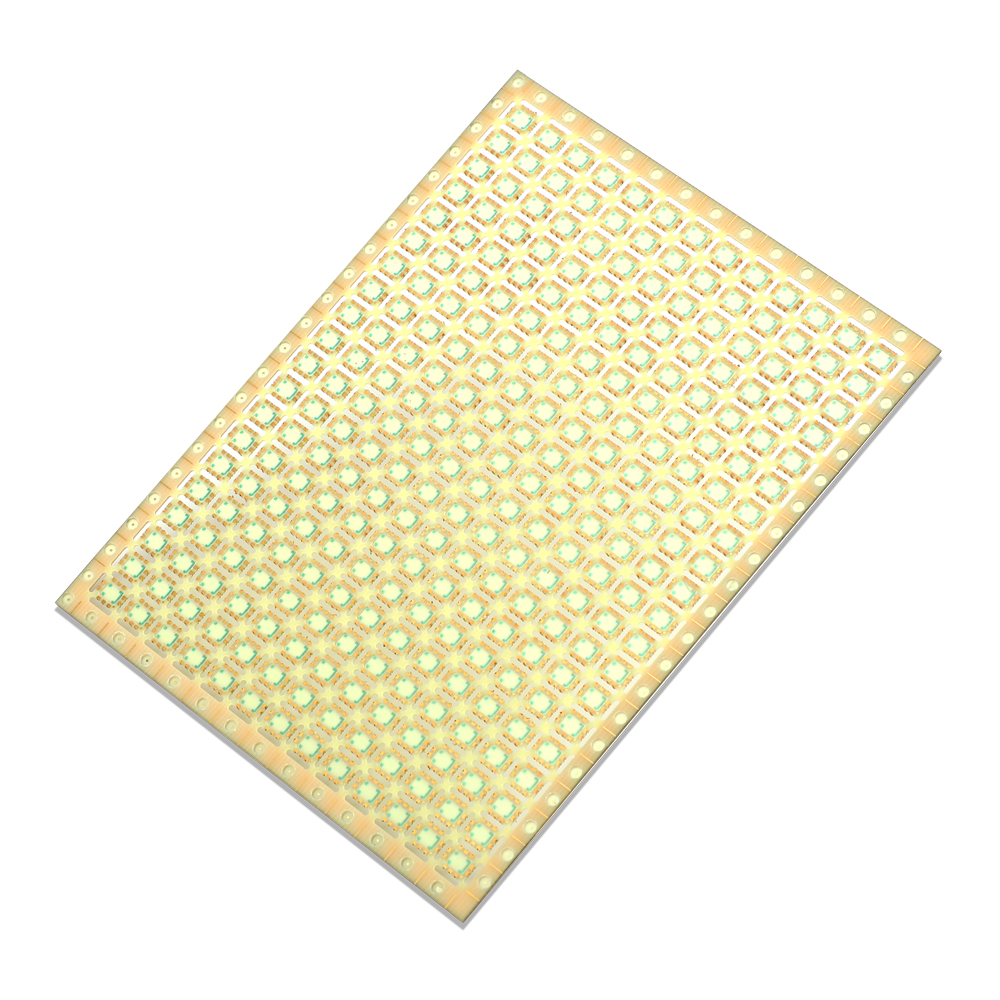

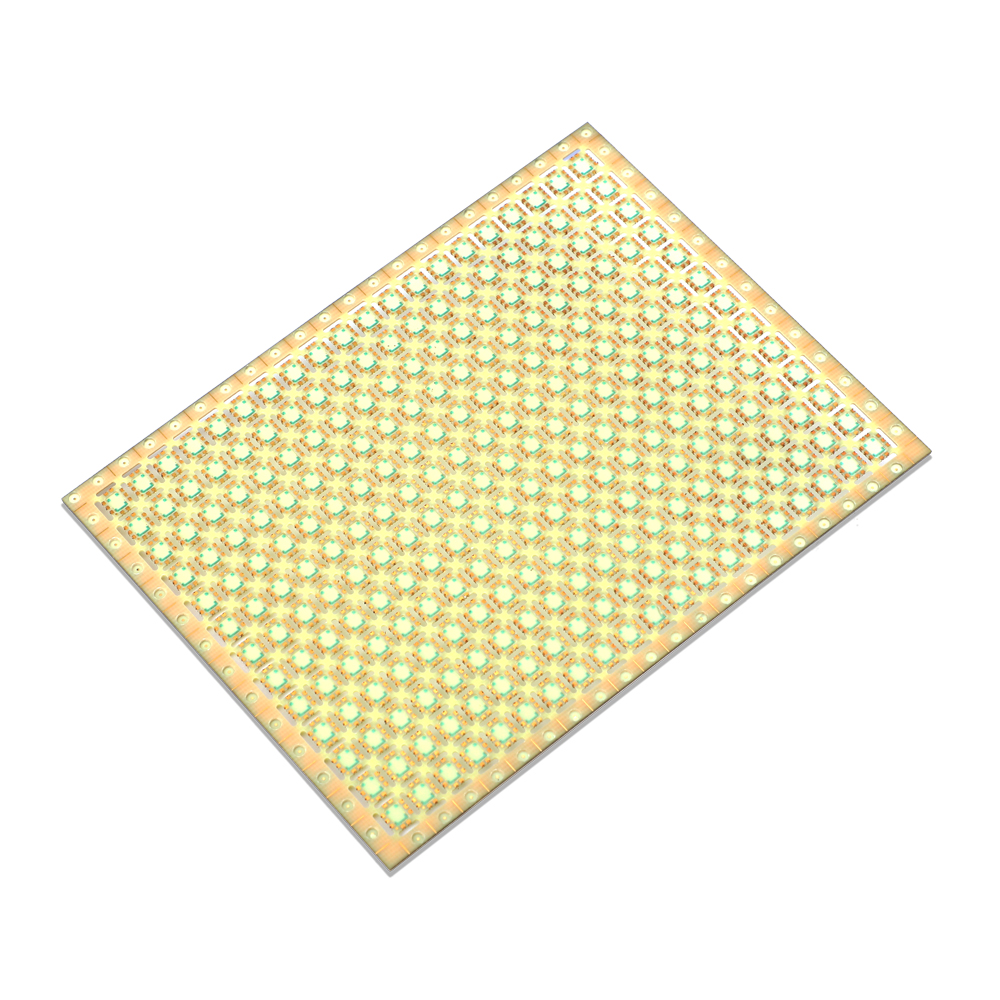

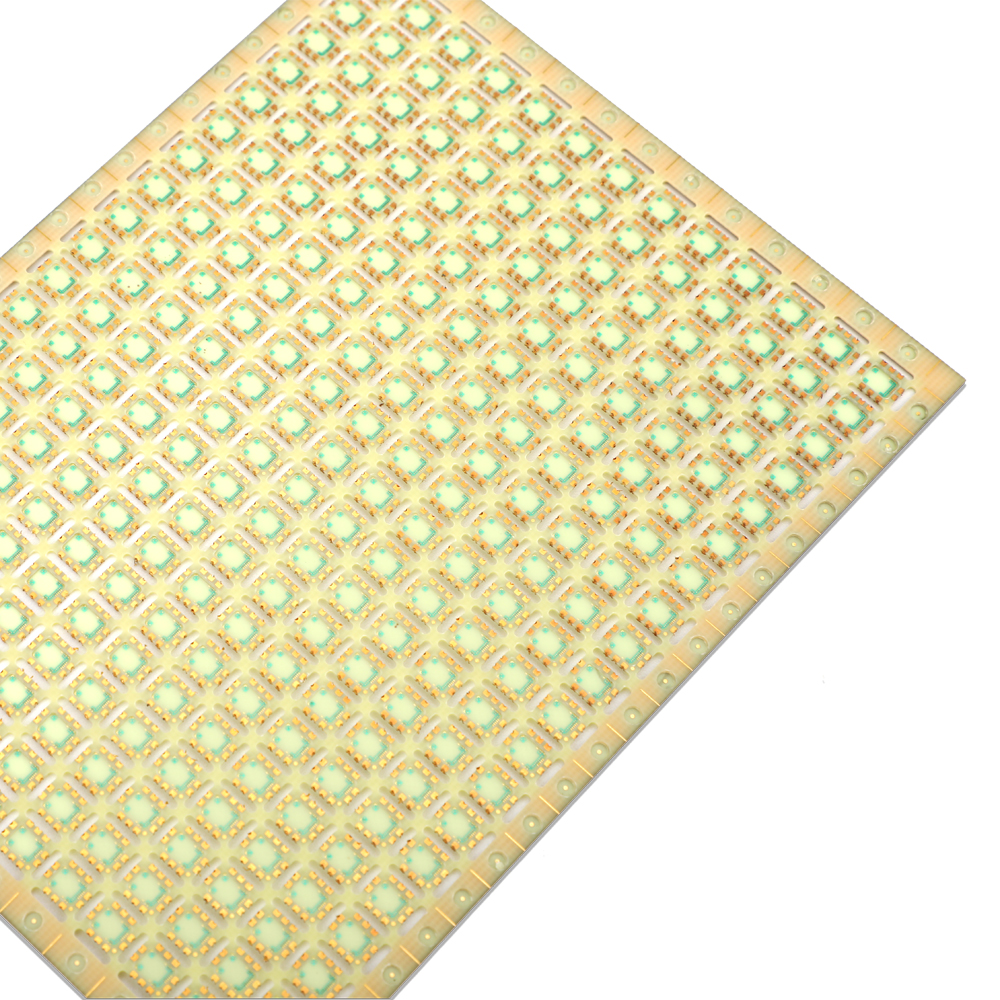

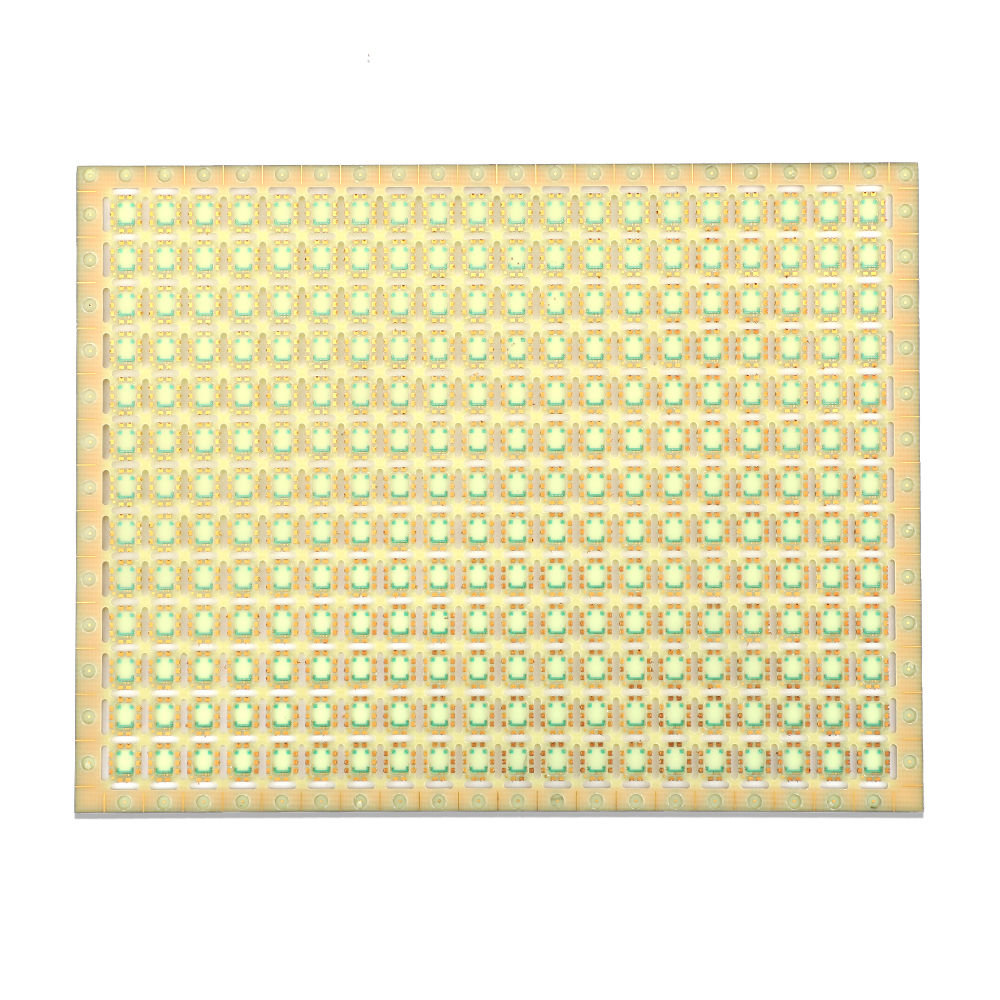

5g circulator PCB

No： CRT_5GCirculator_V01
Layer Count: 3L+Blind hole
Base Material： Panasonic M6+FR4
Board Thicknes： 0.41mm
Copper Thickness： 35um（1oz）
Surface Finish： ENIG（0.05-0.1um）
Single size： 5.2*4.5mm
panel size： 98*94mm*288pcs
Special handicraft products:： *3L+Blind hole+depth control milling（level milling）
Application Segment： Auto,Industrial,Medical,Comsumer
Availability:

Special material high frequency PCB

Special material high frequency PCBSpecial Tech.
Place of Origin：China1.Impedance


2.Via Filling


3.PFH,Backdrill


4.Mix Finishes


5.Cave


6.heatsink


7.Countersink


8.Hybrid Stackup

Brand Name：CRT
Application Segment:Auto,Industrial,Medical,DataCom、Comsumer
Layer Count:1~12L
Matierial:High speed FR4, BT, Rogers...
Board Thickness(mm):0.2mm~3.0mm
Copper Thickness(oz):0.33oz~3oz
Size(mm):5mm~1200mm
Min. LW/LS(mm):0.05/0.05
Min. Hole(mm):0.1
Solder Mask:Green, Yellow, Blue, Black, White...
Surface Finish:ENIG,OSP,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
