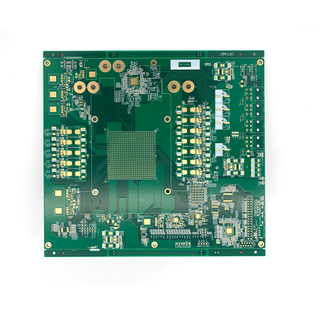

No：CRT_MINING_V01

Layer Count: 10L

Base Material： FR4 Tg170

Board Thicknes： 2.0mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 196.02x227.97mm

panel size： 212.02x227.97mm

Special handicraft products:： *Impedance control

*The holes of VIP resin plugs shall be filled by electroplating

Application Segment： Auto,Industrial,Medical,Comsumer

No：CRT_COM_V01

Layer Count: 6L

Base Material： FR4 Tg150

Board Thicknes： 1.6mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 146*105mm

panel size： 146*117mm*1pcs

Special handicraft products:：*Impedance control

Application Segment：Auto,Industrial,Medical,Comsumer

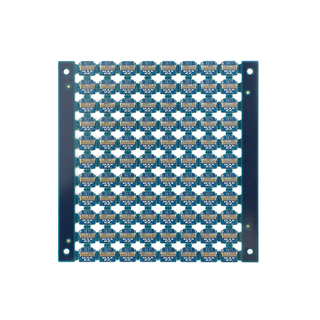

No：CRT_USB_V01

Layer Count: 4L

Base Material： FR4 Tg150

Board Thicknes： 0.6mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 7.6*6.83mm

panel size： 95.08*94.8mm

Special handicraft products:： "*Small size and thin board

*Impedance control"

Application Segment：Auto,Industrial,Medical,Comsumer



No：CRT_IND2_V01

Layer Count: 8L

Base Material： FR4 Tg150

Board Thicknes： 1.6mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 68*49mm

panel size： 68*59mm

Special handicraft products:：*Impedance control

Application Segment：Auto,Industrial,Medical,Comsumer



Layer Count: 8L

Base Material： FR4 Tg150

Board Thicknes：1.6mm

Copper Thickness：35um

Surface Finish：ENIG（0.05-0.1um）

Single size：68*49mm

panel  size：68*59mm

Special handicraft products:： *Impedance control

Application Segment： *Auto,Industrial,Medical,Comsumer
