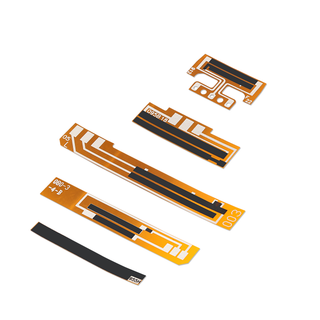

No： CRT_TFPC_V01

Base Material： PI

Board Thicknes： 0.127mm

Copper Thickness：

Dimension： min5.33x77.34mm

Special handicraft products:： *silver ink

*Control Laser trimmed resistive ink

Application Segment： Potentiometer, oil level gauge

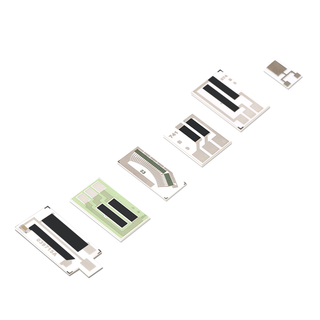

No： CRT_TCERAMICS

Base Material： Ceramic

Board Thicknes： 1.0mm

Copper Thickness：

Dimension： min7.62 x max31.7mm

Special handicraft products:： *High temperature silver paste

*High temperature ruthenium slurry

*Carbon resistance control

*Chip capacitor

Application Segment： Potentiometer, oil level gauge

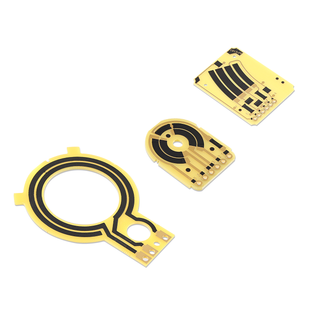

No： CRT_TPCB_V01

Base Material： FR-4

Board Thicknes： 1.2mm

Copper Thickness： 14um

Dimension： min28 x max70.4mm

Special handicraft products:： * silver ink

* Control Laser trimmed resistive ink

* At the same time, three kinds of carbon resistance values are controlled, ranging from 10 to 10000 ohm

* Voltage linear curve contro

Application Segment： Potentiometer, oil level gauge
