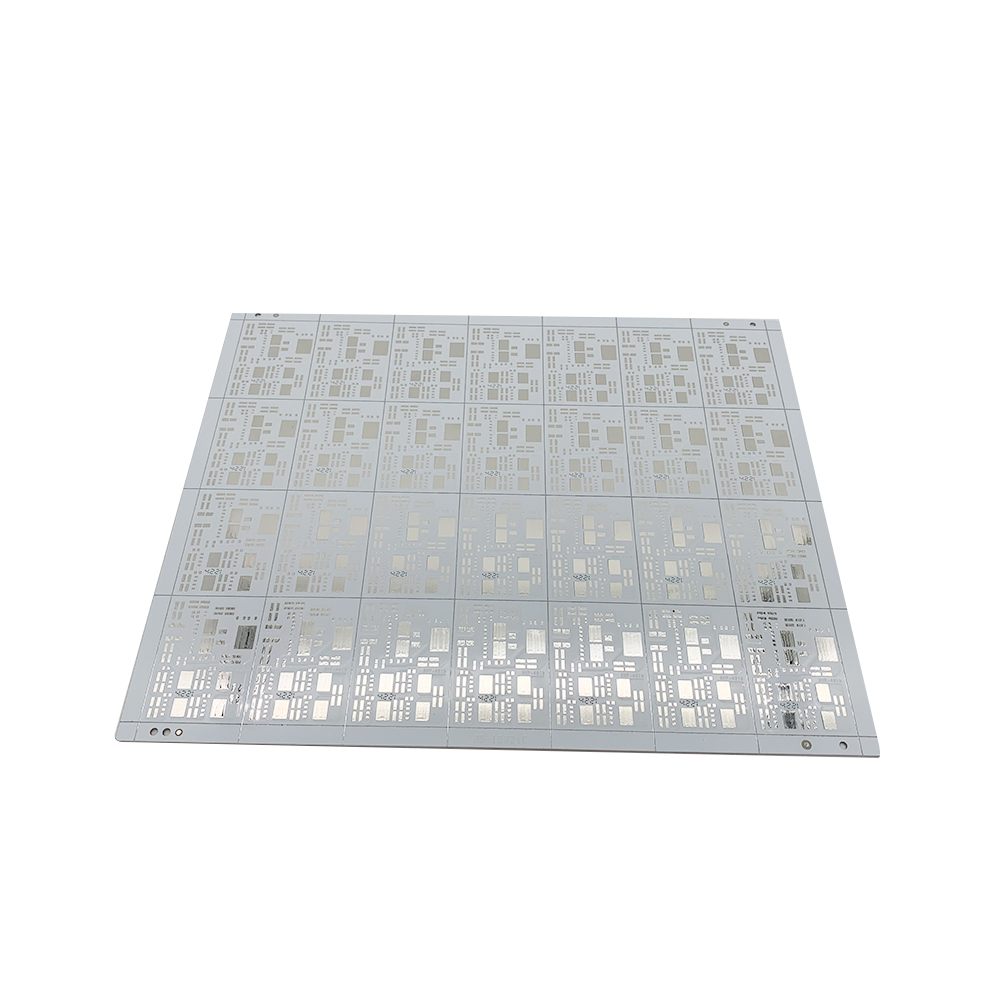

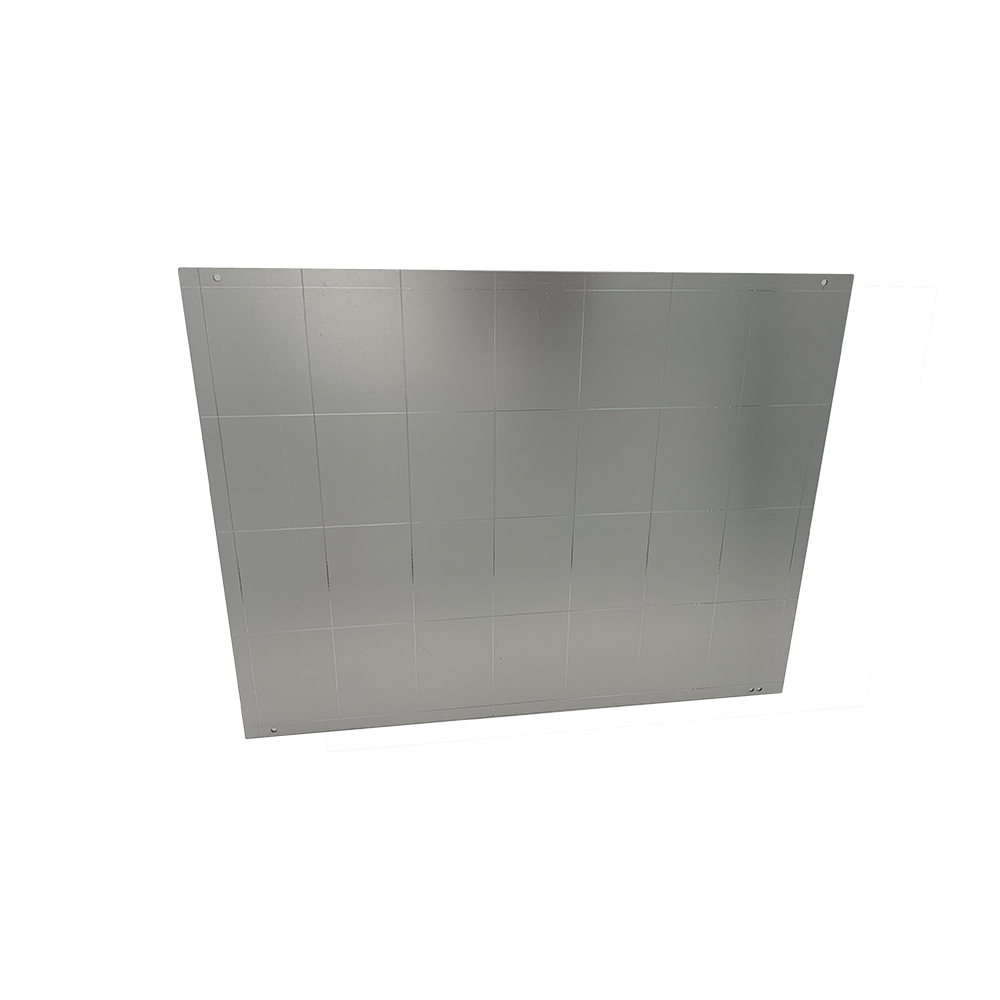

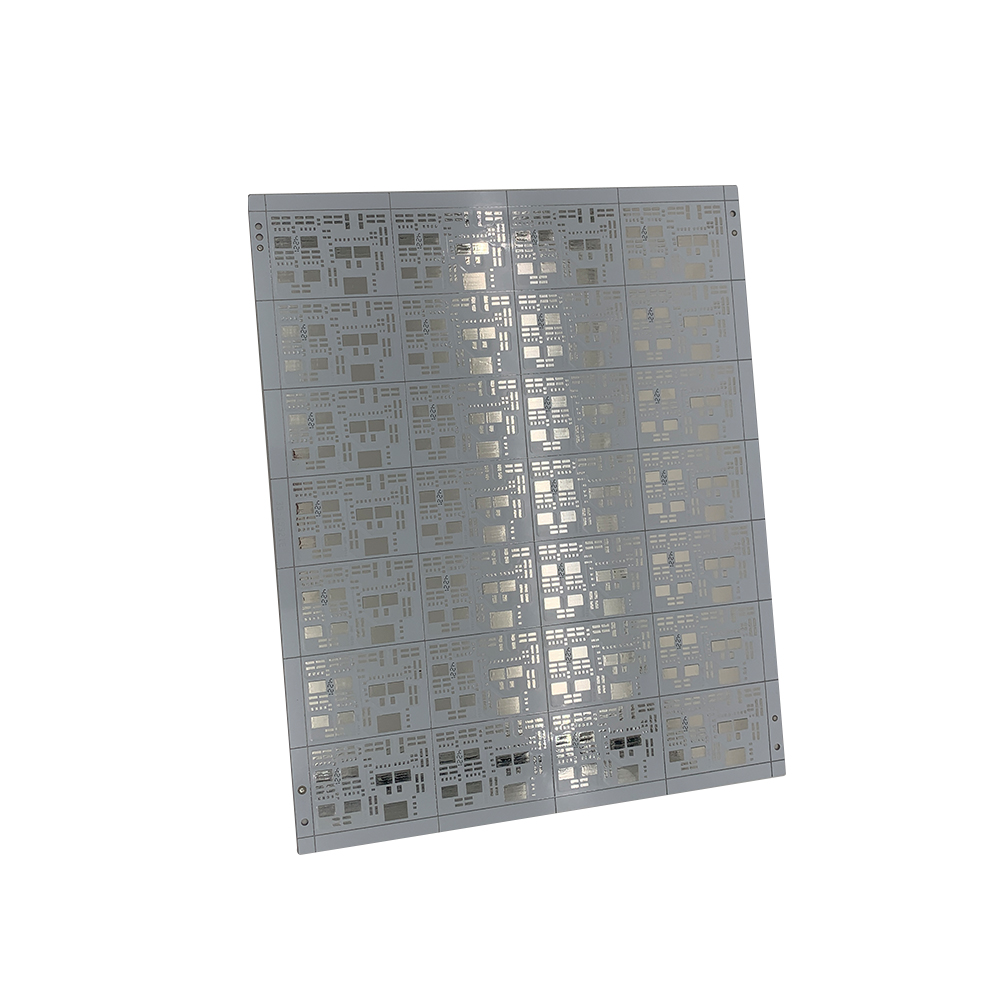

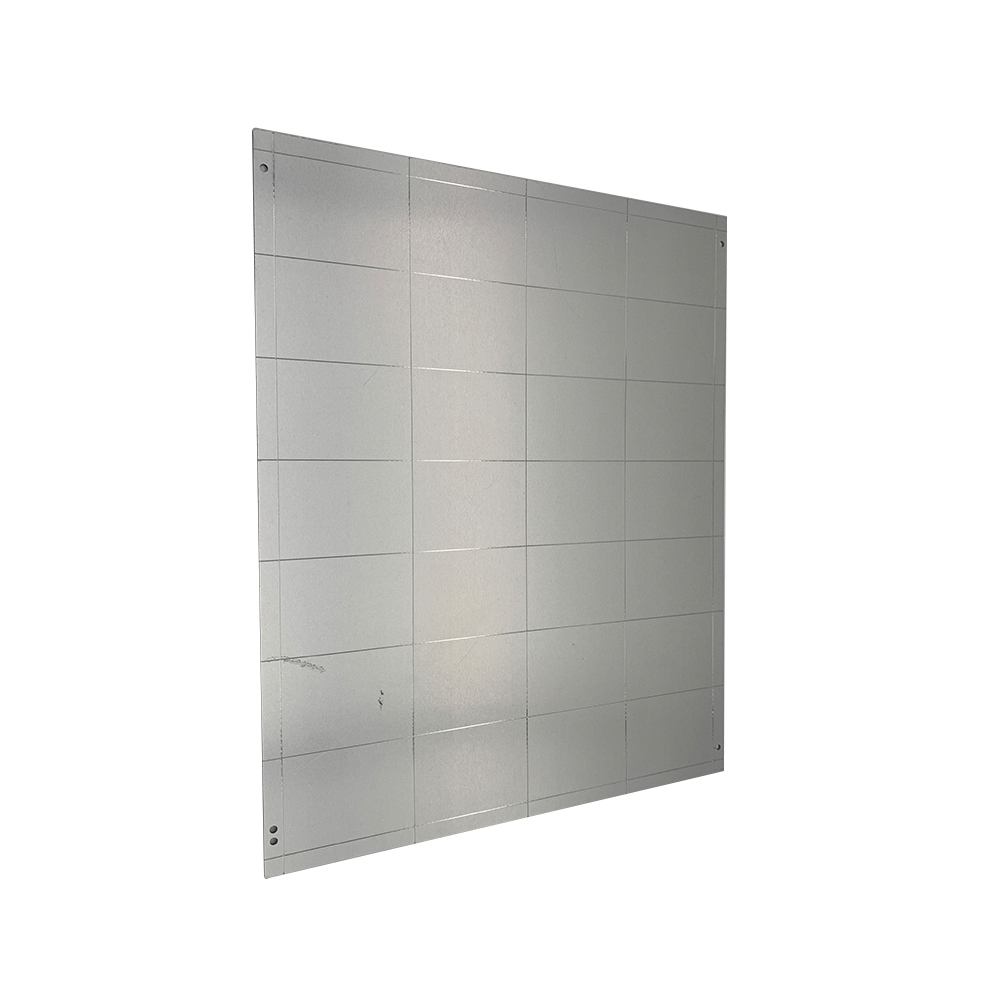

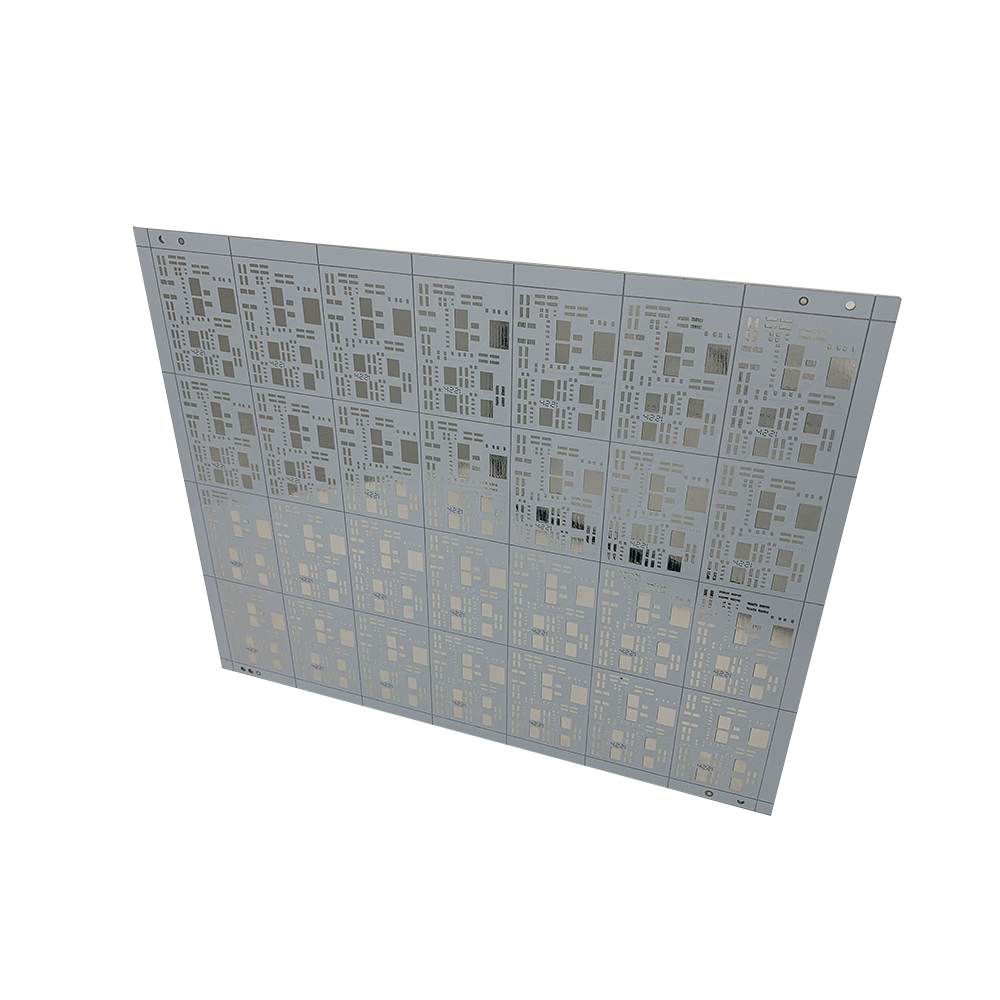

Aluminum Core PCB

No： CRT_Aluminum_V02
Layer Count: single
Base Material： MC-Alu (AL5052) Bergquist HPL
Board Thicknes： 1.5mm
Copper Thickness： 70um
Surface Finish： HASL Pb-free
Single size： 58.2*41.6mm
panel size： 307.2*249.2mm*28pcs
Special handicraft products:： *Metal substrate
Application Segment： Auto,Industrial,Medical,Comsumer
Availability:

Special material high frequency PCB

Special material high frequency PCBSpecial Tech.
Place of Origin：China1.Impedance


2.Via Filling


3.PFH,Backdrill


4.Mix Finishes


5.Cave


6.heatsink


7.Countersink


8.Hybrid Stackup

Brand Name：CRT
Application Segment:Auto,Industrial,Medical,DataCom、Comsumer
Layer Count:1~12L
Matierial:High speed FR4, BT, Rogers...
Board Thickness(mm):0.2mm~3.0mm
Copper Thickness(oz):0.33oz~3oz
Size(mm):5mm~1200mm
Min. LW/LS(mm):0.05/0.05
Min. Hole(mm):0.1
Solder Mask:Green, Yellow, Blue, Black, White...
Surface Finish:ENIG,OSP,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
