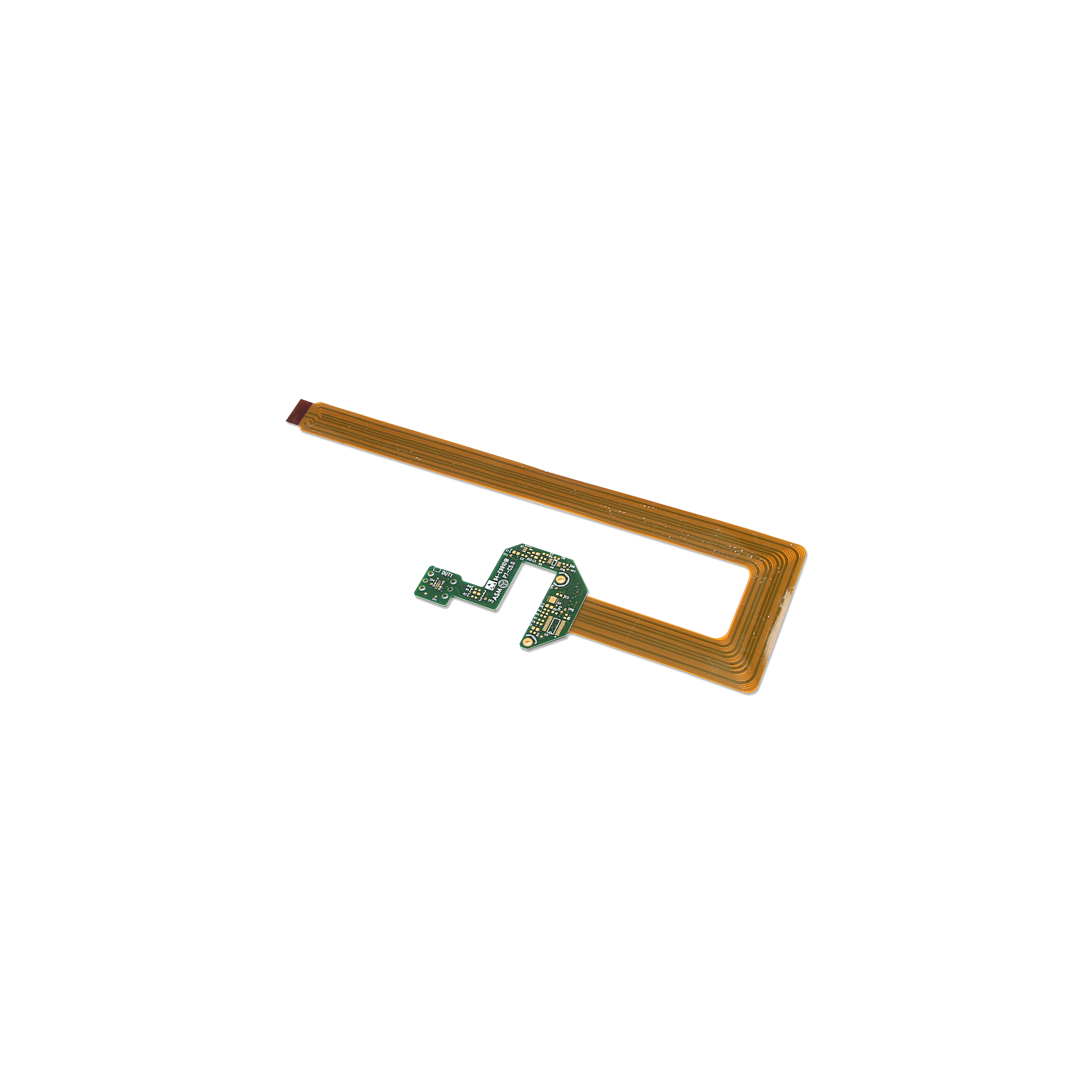

Industrial rigid flexible PCB

No： CRT_RFPCB_V01
Layer Count: 4L(Rigid-Flex)
Base Material： FR4 Tg150 + PI
Board Thicknes： Rigid-0.6mm，Flex-0.18mm
Copper Thickness： 35um
Surface Finish： ENIG（0.05-0.1um）
Single size： 49.5*20.6mm
Special handicraft products:： *Gold finger design at soft board
Application Segment： Auto,Industrial,Medical,Comsumer
Availability:

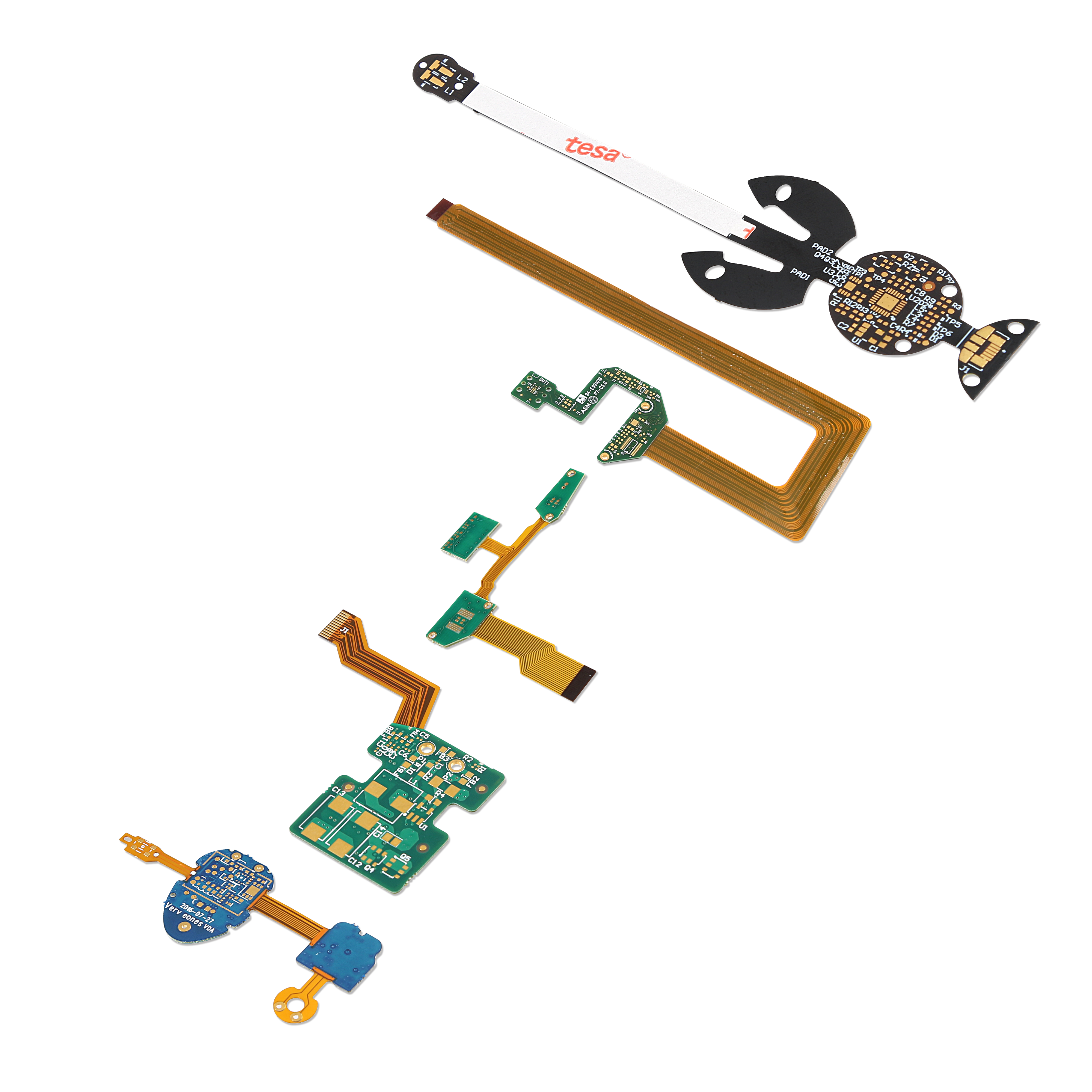

Rigid-Flex PCB

Rigid-Flex PCBSpecial Tech.
Place of Origin：China1.HDI Anylayer


2.Dupont material


3.Metal rigid-flex


4.Semi-flex


5.ENEPIG,Bonding

Brand Name：CRT
Application Segment：Auto,Industrial,Medical,DataCom、Comsumer
Layer Count：2~24L
Matierial：FR4 Tg170 + PI+ PTFE
Board Thickness(mm)：0.2mm~3.0mm
Copper Thickness(oz)：0.33oz~3oz
Size(mm)：5mm~500mm
Min. LW/LS(mm)：0.05/0.05
Min. Hole(mm)：0.1
Solder Mask：Green, Yellow, Blue, Black, White...
Surface Finish：ENIG,OSP,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
