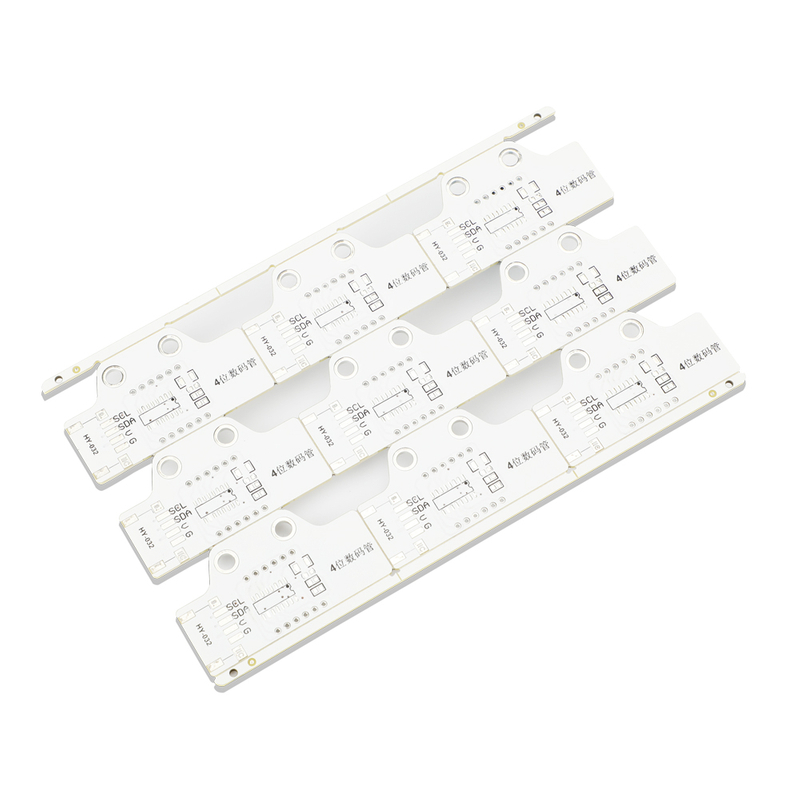

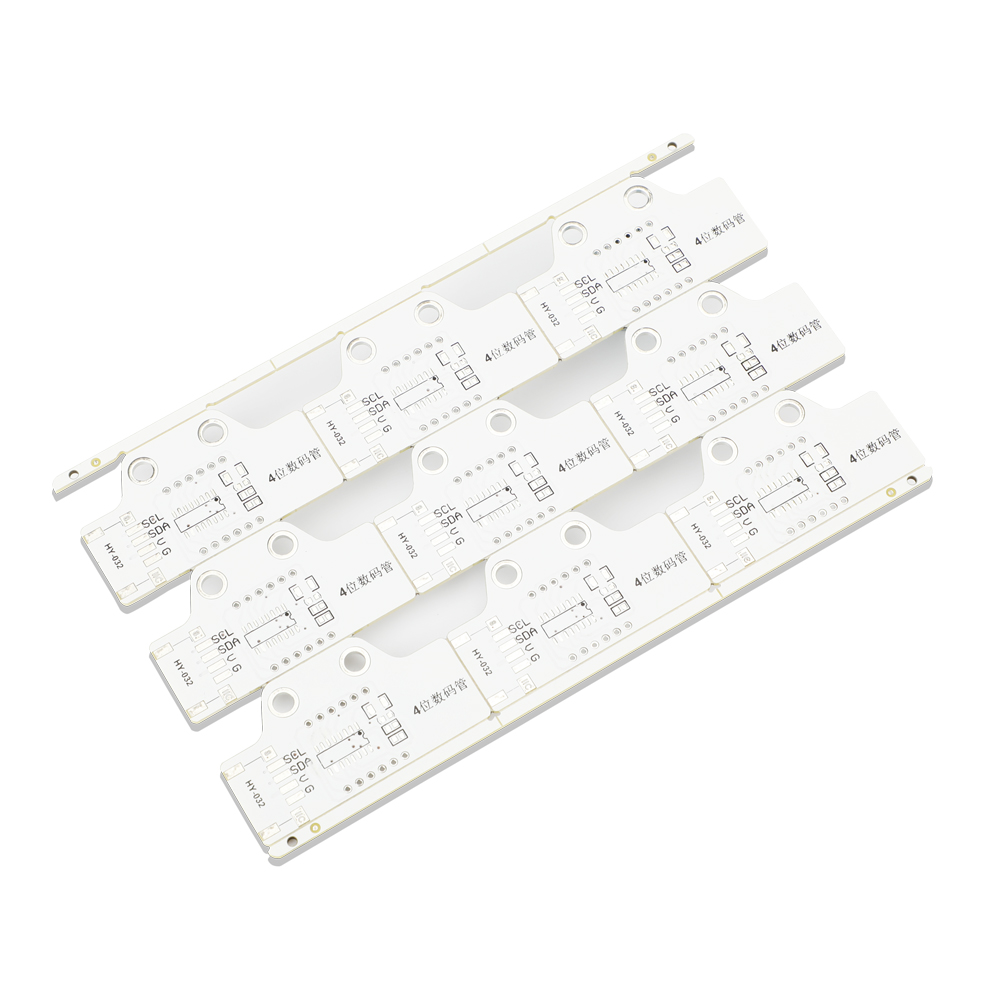

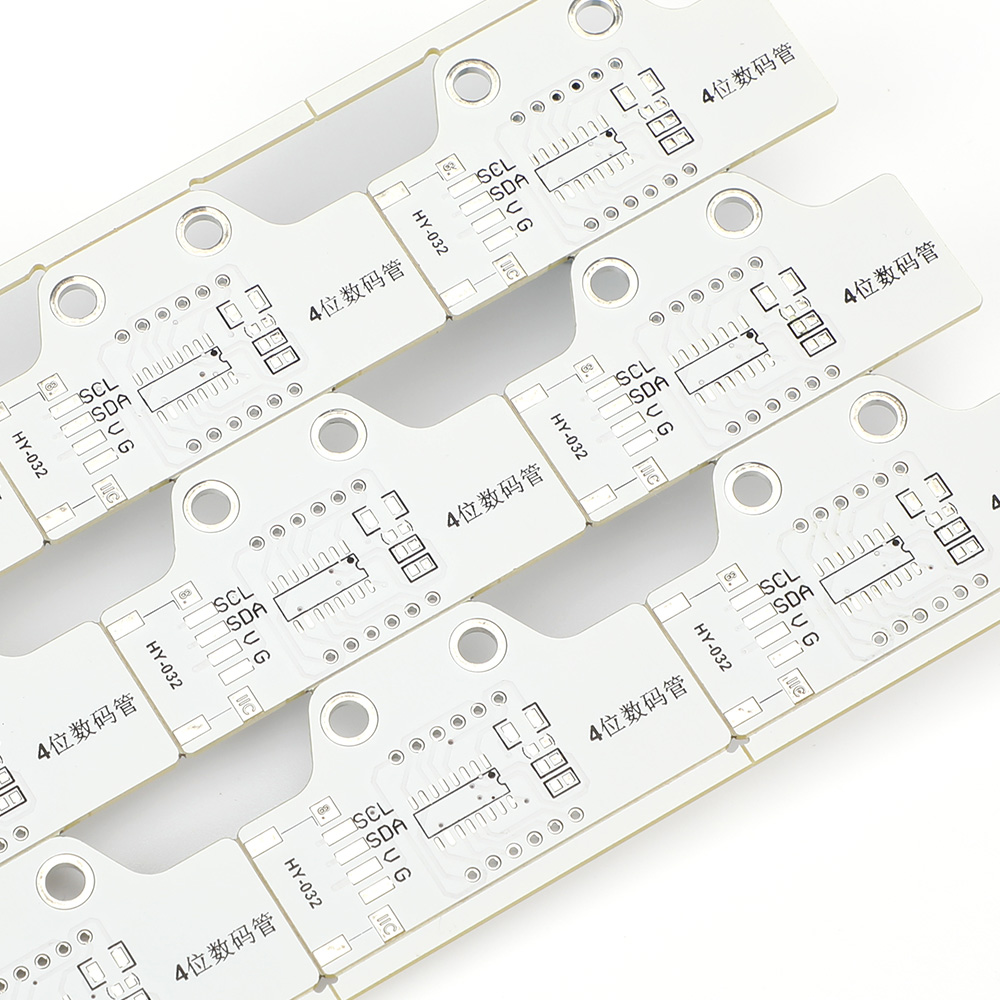

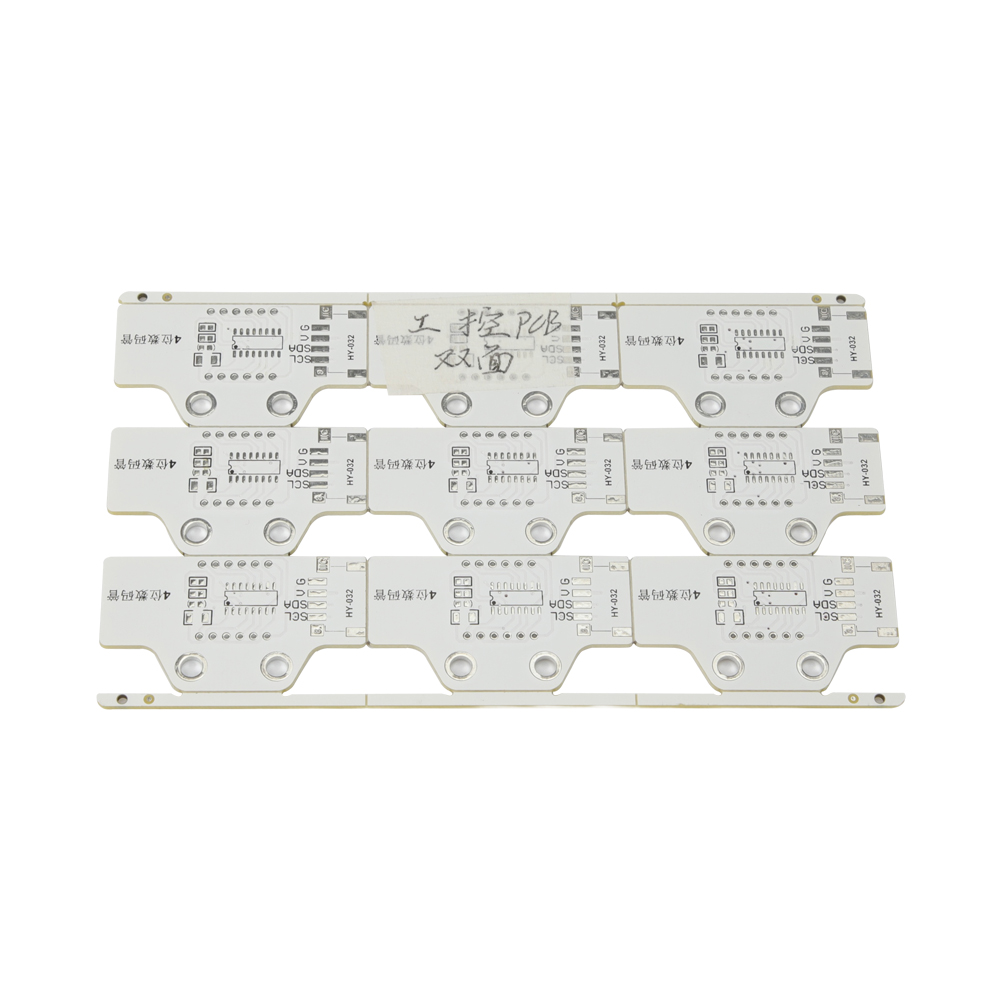

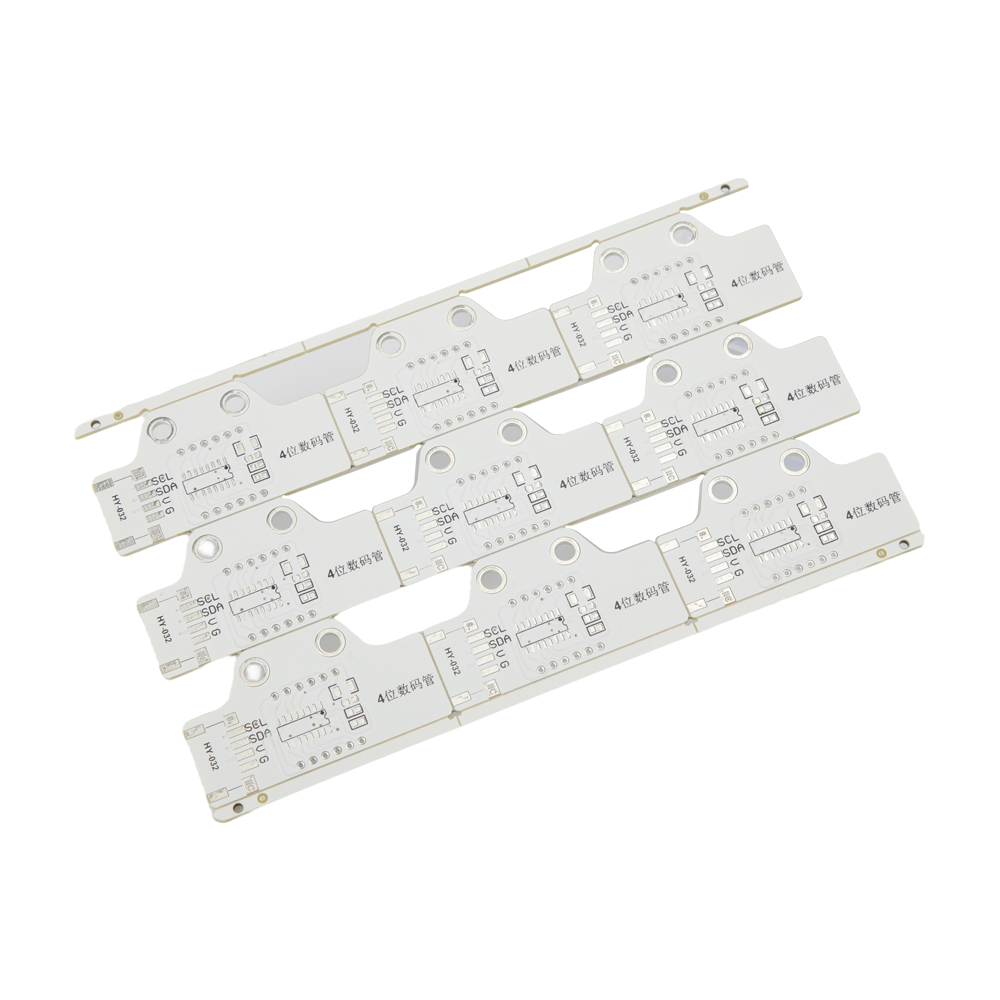

Medical device PCB

No：CRT_MED_V01
Layer Count: 2L
Base Material： FR4 Tg150
Board Thicknes： 1.55mm
Copper Thickness： 35um
Surface Finish： HASL
Single size： 86.89*73.20mm
panel size： 191.78*172.8mm
Special handicraft products:：*Impedance control
Application Segment：Auto,Industrial,Medical,Comsumer
Availability:

Double Side PCB

Double Side PCBSpecial Tech.
Place of Origin：China1.Countersink;
2.Carbon;
3.Peelable mask;
4.Step Routing
5.Mixed finishes
6.ENEPIG
Brand Name：CRT
Application Segment：Auto,Industrial,Medical,DataCom、Comsumer
Layer Count：1~2L
Matierial：FR4 (Tg130~Tg170)
Board Thickness(mm)：0.6mm~3.0mm
Copper Thickness(oz)：Hoz~3oz
Size(mm)：5mm~1500mm
Min. LW/LS(mm)：0.1/0.1
Min. Hole(mm)：0.25
Solder Mask：Green, Yellow, Blue, Black, White...
Surface Finish：ENIG,OSP,HASL,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
