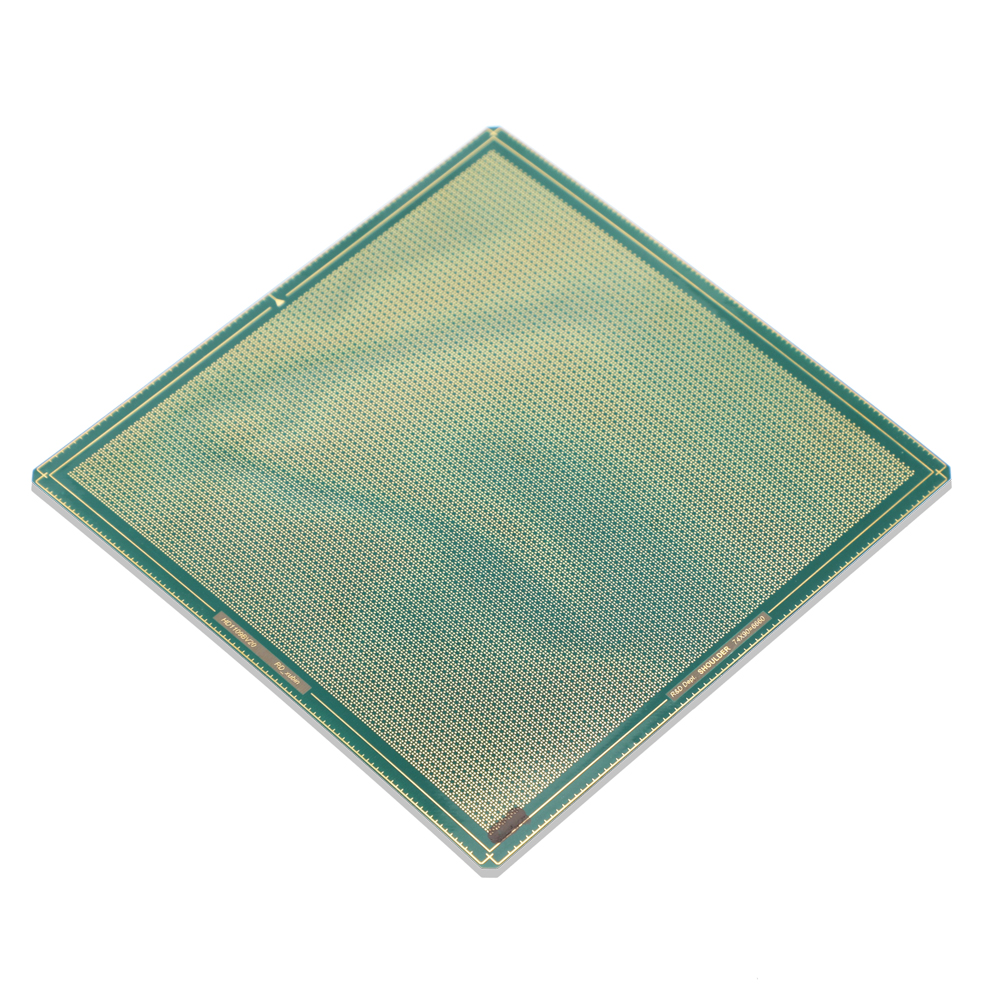

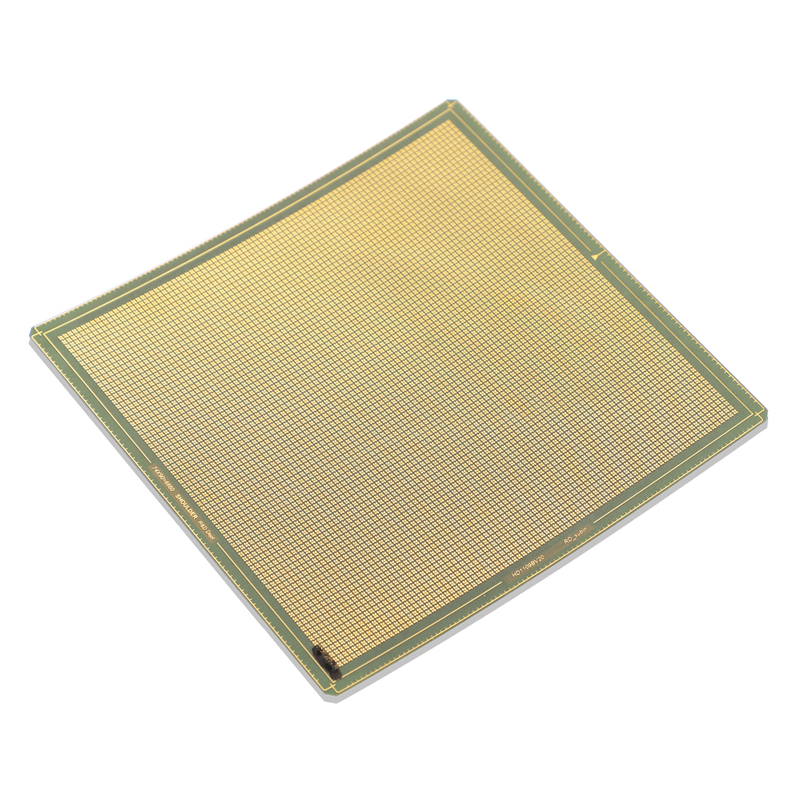

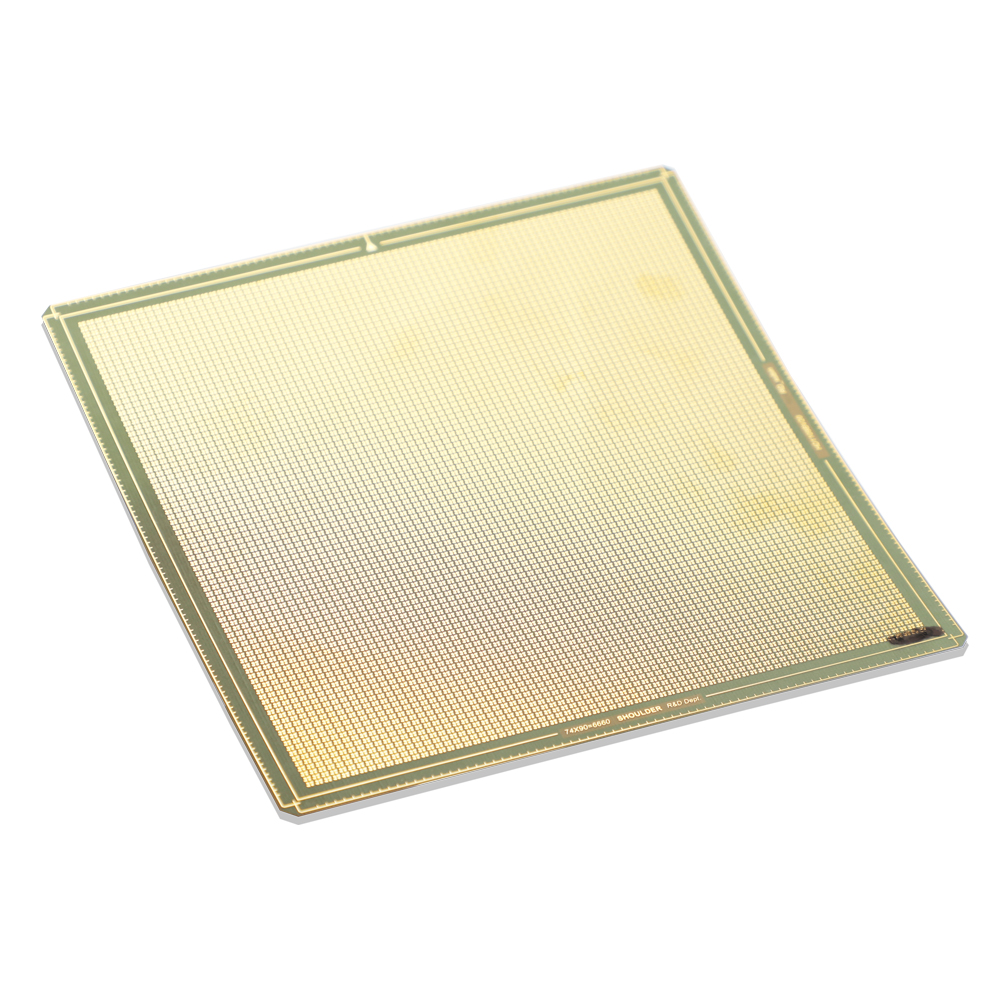

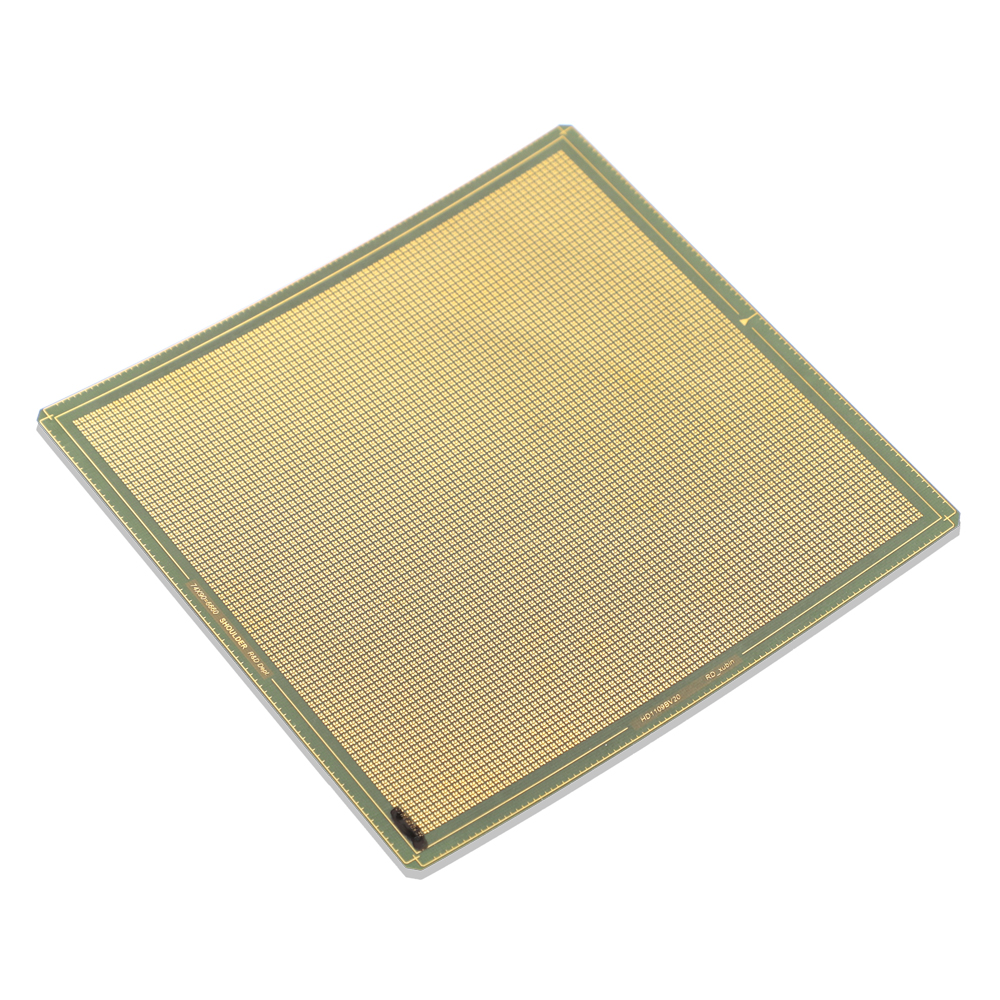

Mini LED PCB

No： CRT_miniLED_V01
Layer Count: 2L
Base Material： DS7409HGB(S)
Board Thicknes： 0.4mm
Copper Thickness： 35um（1oz）
Surface Finish： ENEPIG
Single size： 2*1.6mm
panel size： 93.81*93.81mm*1870pcs
Special handicraft products:： *Small volume, high density and thin board
Application Segment： Auto,Industrial,Medical,Comsumer
Availability:

Product Description

Special material high frequency PCBSpecial Tech.
Place of Origin：China1.Impedance


2.Via Filling


3.PFH,Backdrill


4.Mix Finishes


5.Cave


6.heatsink


7.Countersink


8.Hybrid Stackup

Brand Name：CRT
Application Segment:Auto,Industrial,Medical,DataCom、Comsumer
Layer Count:1~12L
Matierial:High speed FR4, BT, Rogers...
Board Thickness(mm):0.2mm~3.0mm
Copper Thickness(oz):0.33oz~3oz
Size(mm):5mm~1200mm
Min. LW/LS(mm):0.05/0.05
Min. Hole(mm):0.1
Solder Mask:Green, Yellow, Blue, Black, White...
Surface Finish:ENIG,OSP,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
