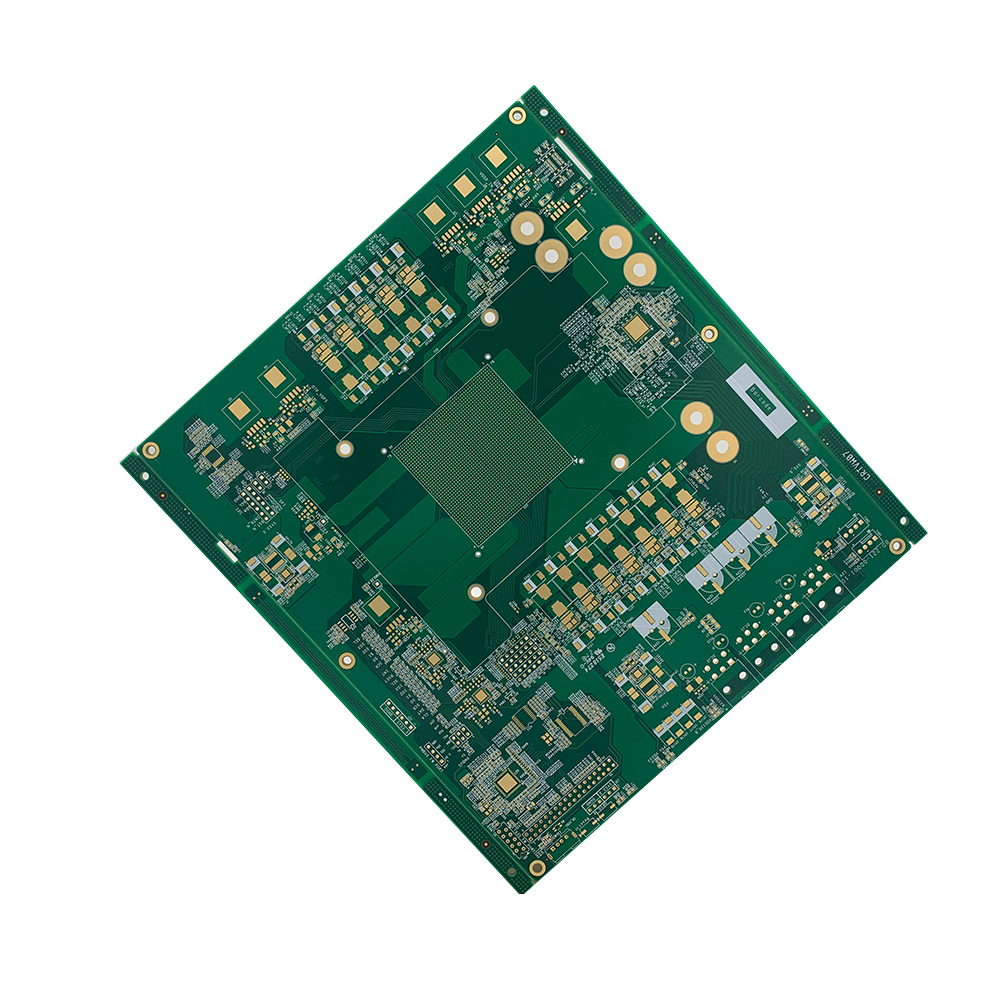

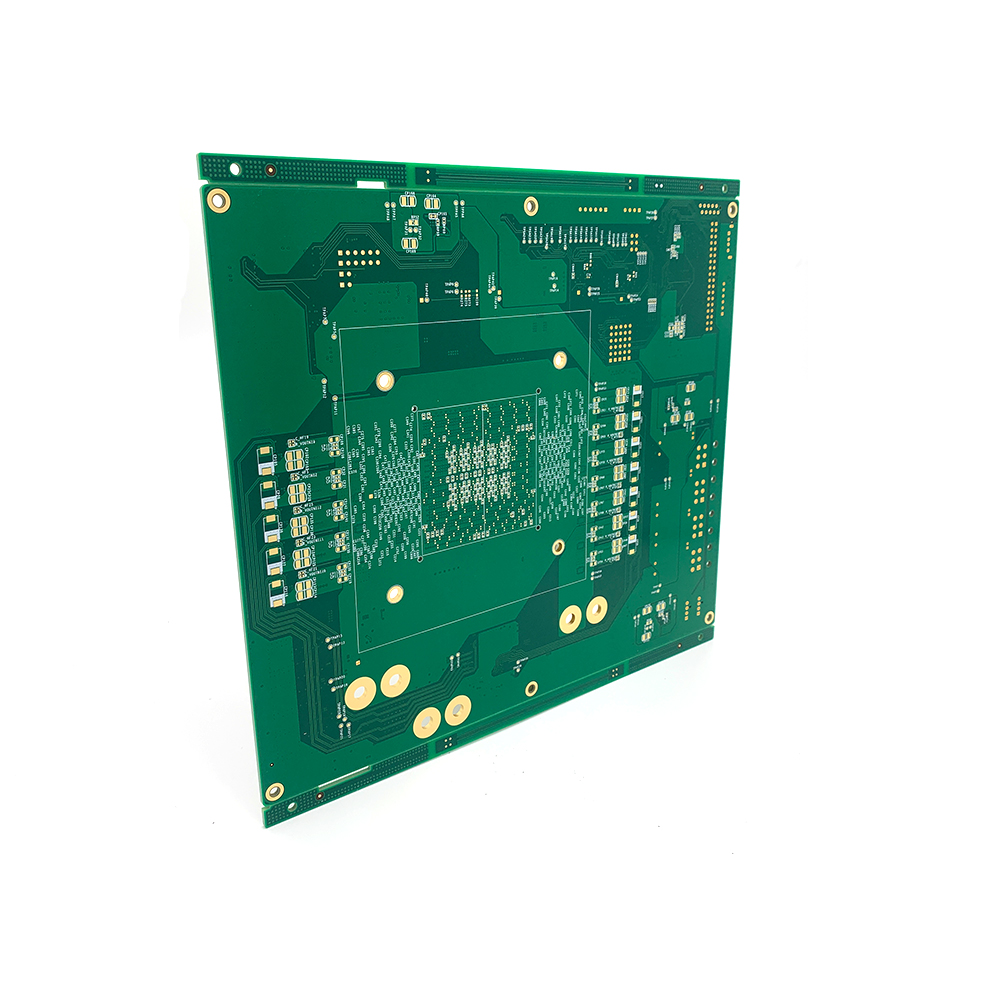

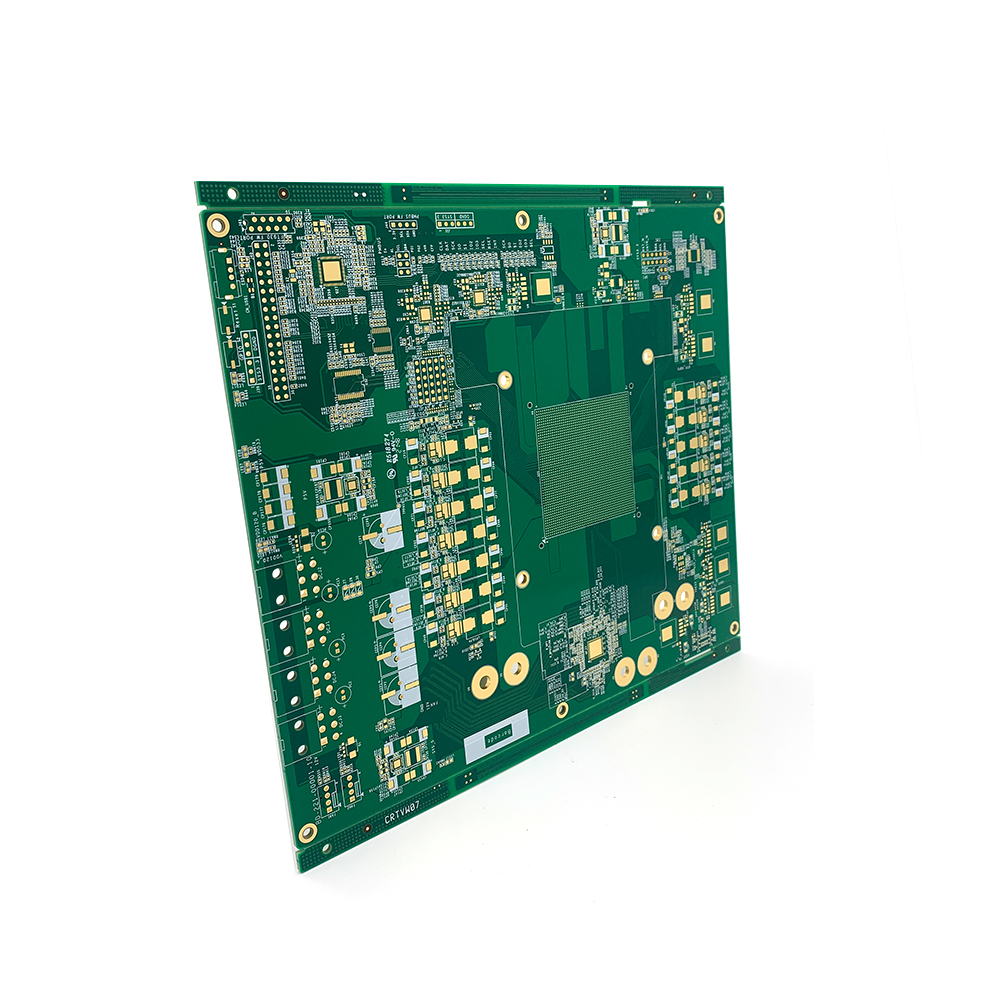

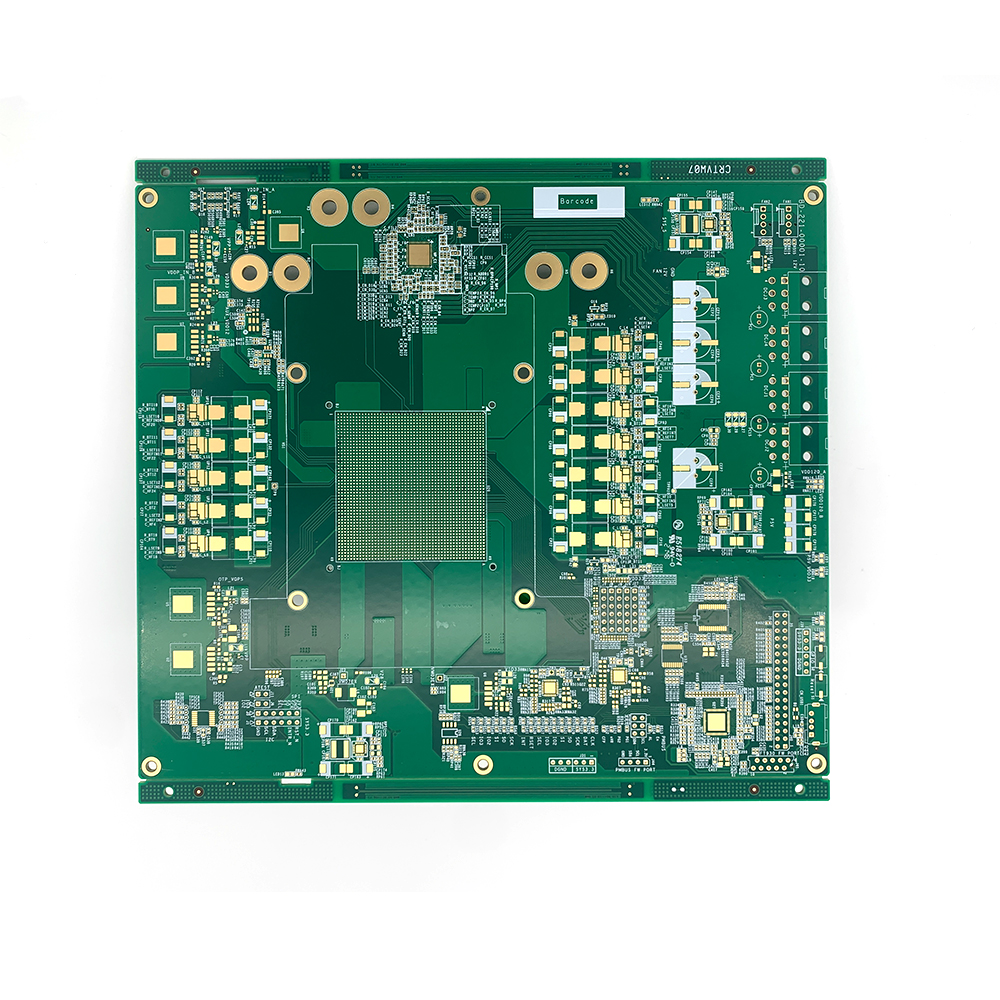

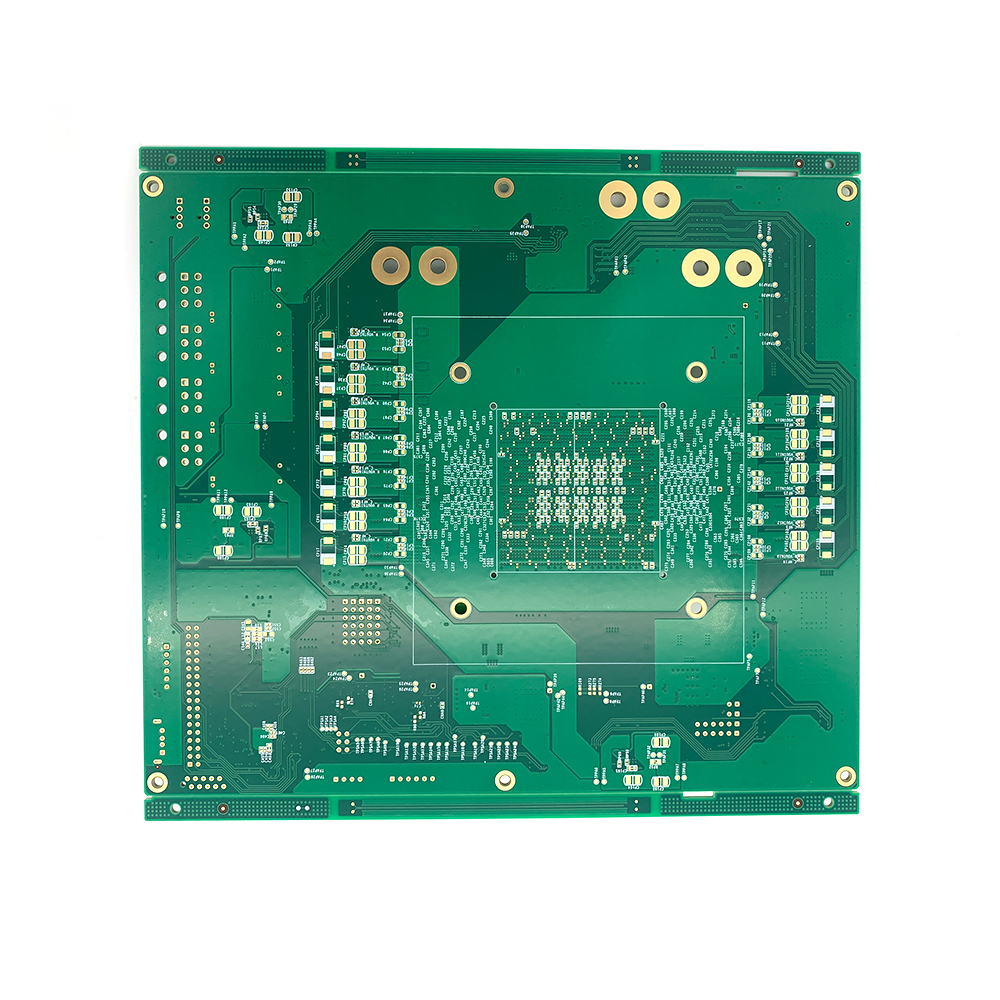

Mother Board of Mining PCB

No：CRT_MINING_V01
Layer Count: 10L
Base Material： FR4 Tg170
Board Thicknes： 2.0mm
Copper Thickness： 35um
Surface Finish： ENIG（0.05-0.1um）
Single size： 196.02x227.97mm
panel size： 212.02x227.97mm
Special handicraft products:： *Impedance control
*The holes of VIP resin plugs shall be filled by electroplating
Application Segment： Auto,Industrial,Medical,Comsumer
Availability:

Product Description

Multi layers PCBSpecial Tech.
Place of Origin：China1.Impedance


2.Via Filling


3.PFH,Backdrill


4.Mix Finishes


5.Cave


6.heatsink


7.ENEPIG

Brand Name：CRT
Application Segment：Auto,Industrial,Medical,DataCom、Comsumer
Layer Count：3~50L
Matierial：FR4 (Tg130~Tg170)
Board Thickness(mm)：0.6mm~10.0mm
Copper Thickness(oz)：Hoz~3oz
Size(mm)：5mm~1200mm
Min. LW/LS(mm)；0.1/0.1
Min. Hole(mm)：0.25
Solder Mask：Green, Yellow, Blue, Black, White...
Surface Finish;ENIG,OSP,HASL,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
