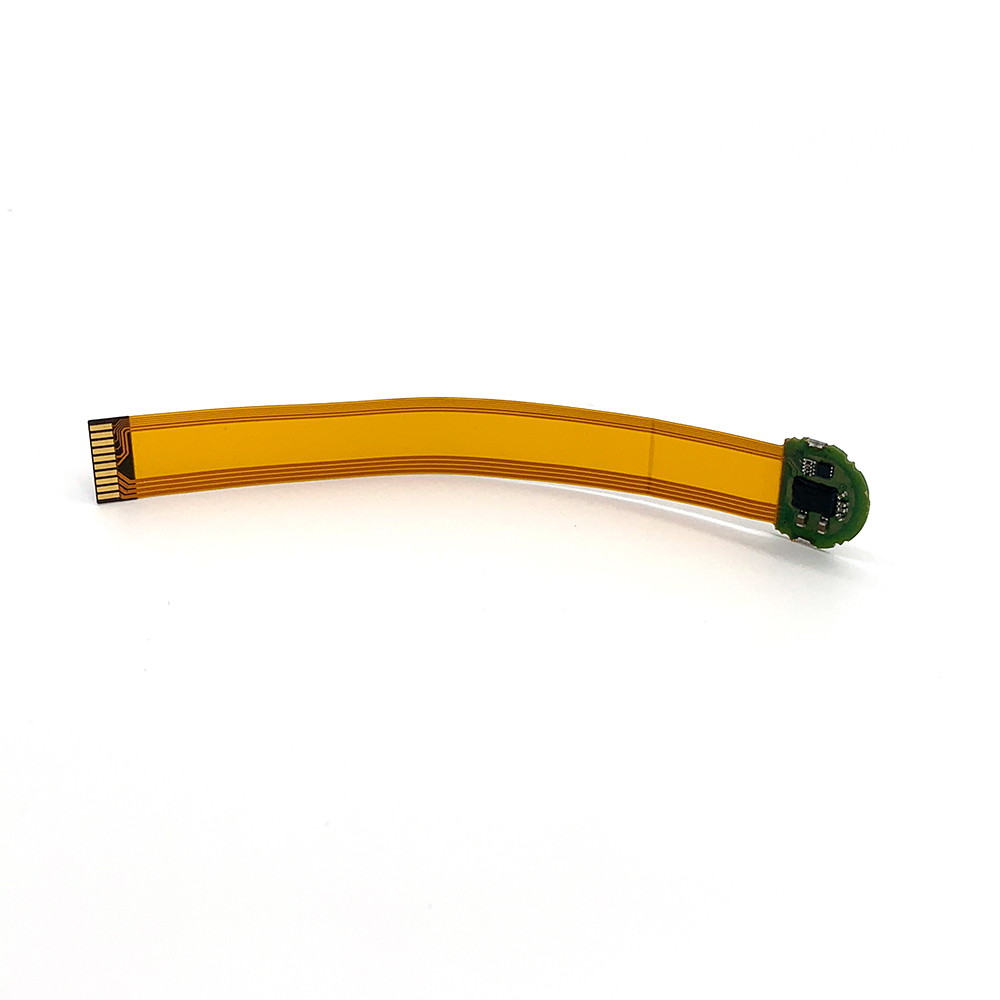

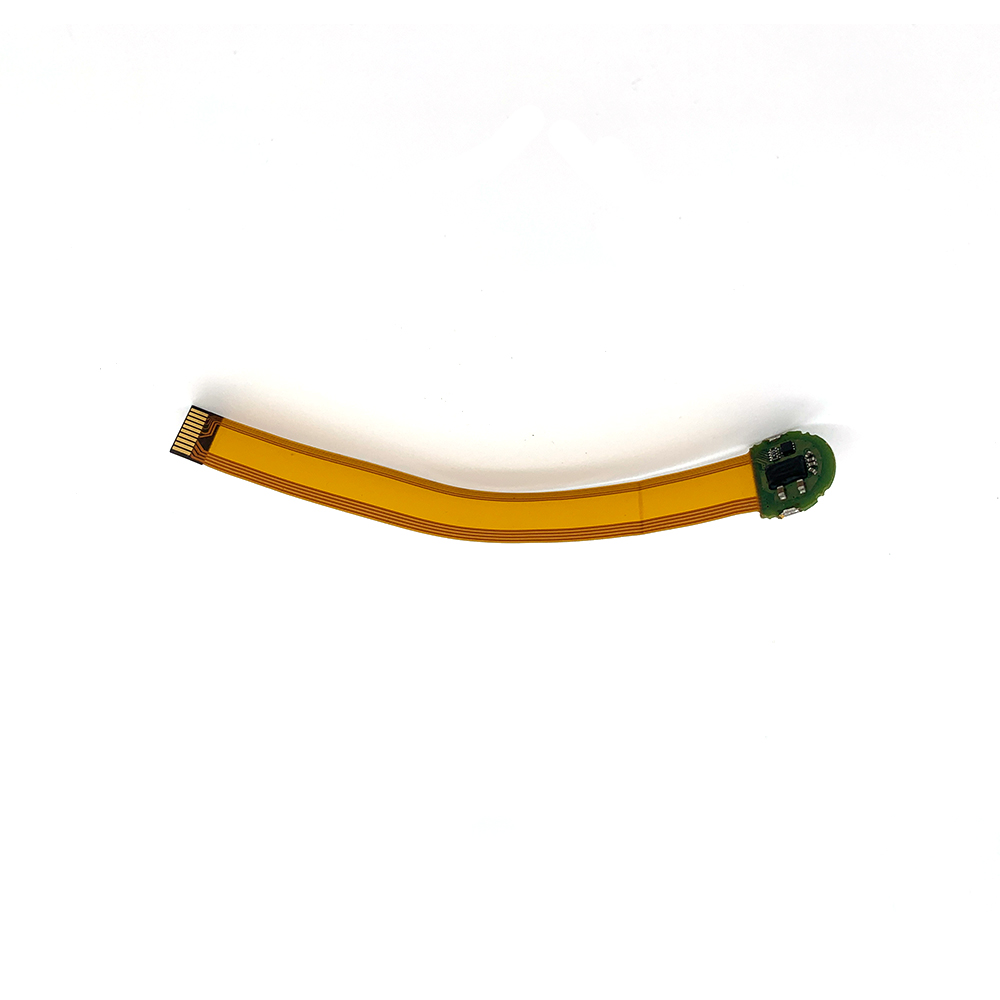

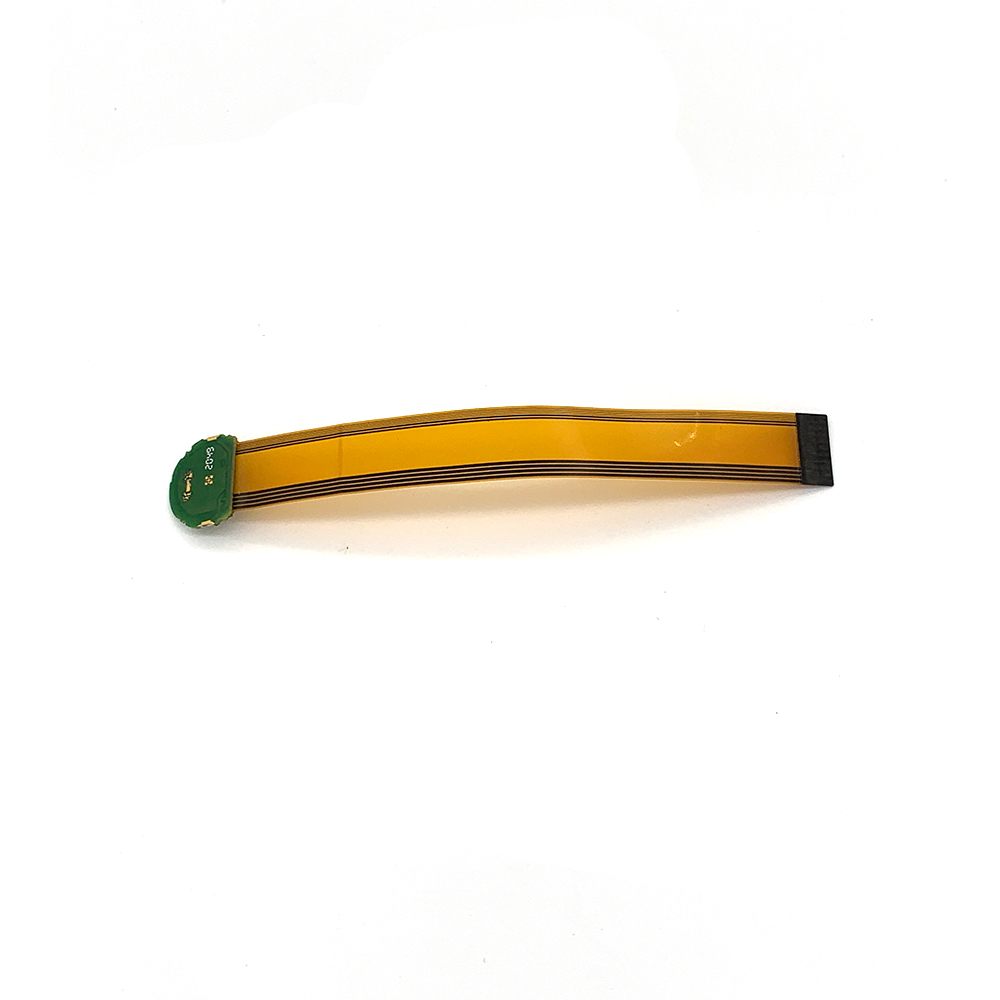

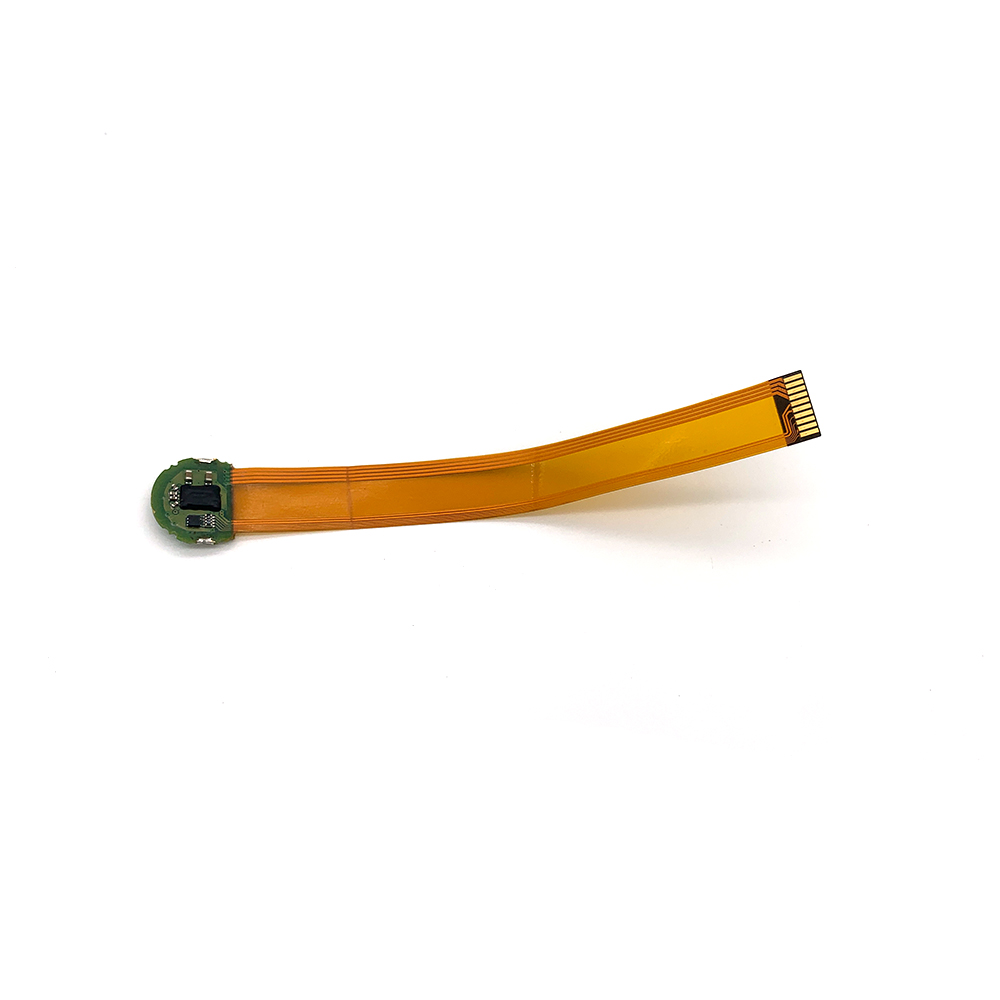

Motor PCBA

NO: CRT_MOTOR_PCBA_v01
type：Rigid flexible PCBA
Base Material：FR4+PI
PCB size：14.5mm*100.1mm
PCB thickness：Rigid-0.7mm，Flex-0.1mm
Workmanship: SMT & Binding design
Application: Motor PCB
Availability:

Product Description

Process Capability
We provide the following services
PCB maximum size
550x450mm




*HDI PCB samples, mass production/PCBA samples, mass production


*SMT chip processing


*Plugin processing


*After welding


*PCBA semi-finished product production


*Machine assembly

PCB minimum size
30*30mm
PCB minimum thickness
0.2mm
PCB shape
Unlimited
Whether to support single-sided/double-sided
Yes
Minimum component size
201
Component height
0.2-25mm
Minimum gap
0.5mm
Minimum BGA
0.2mm
Maximum component size
55mmx55mm*15mm
SMT patch part type
SOP,SOT,QFN,QFP,BGA,Bonding
Is it possible to mount the connector
Yes
Whether it can be wave soldered
Yes
