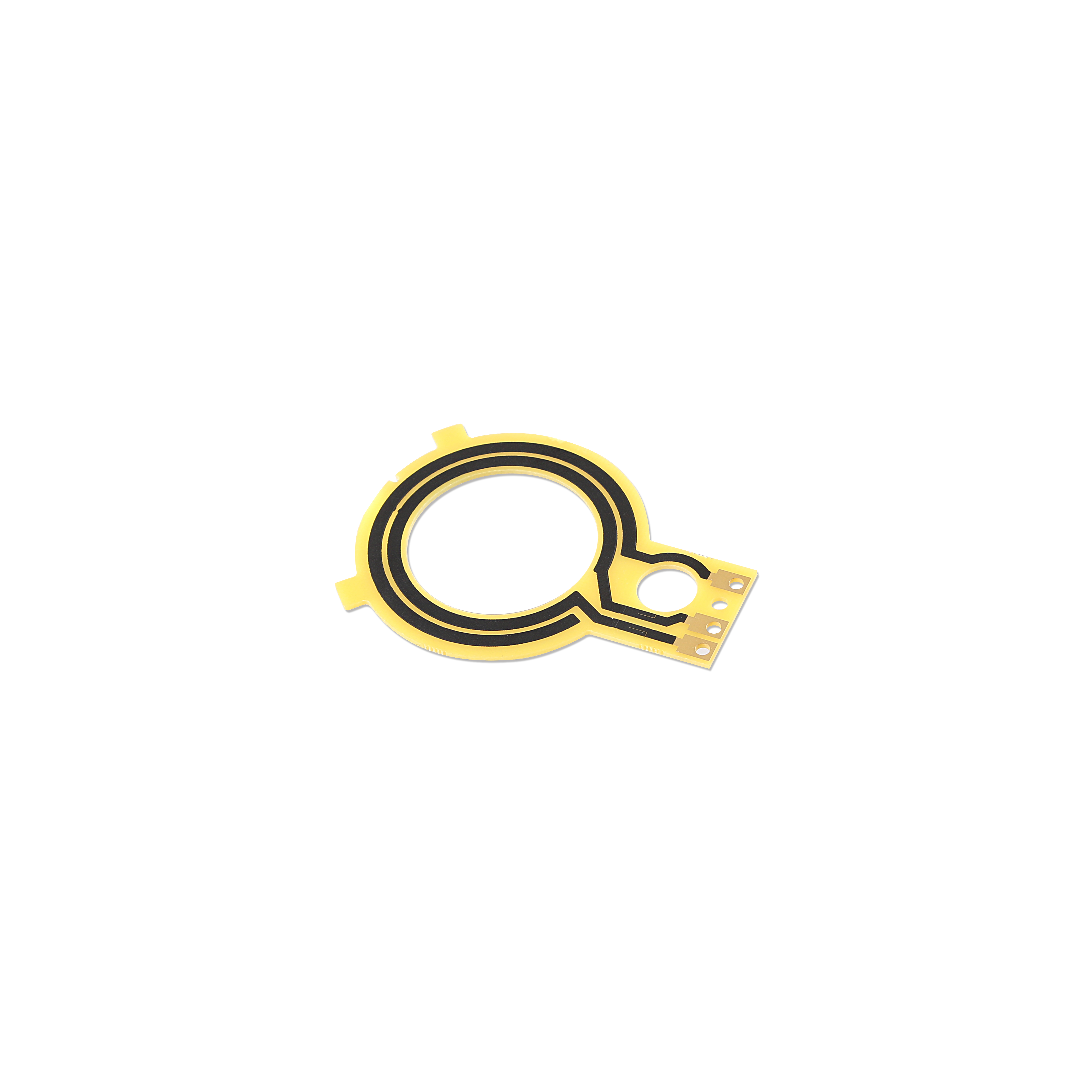

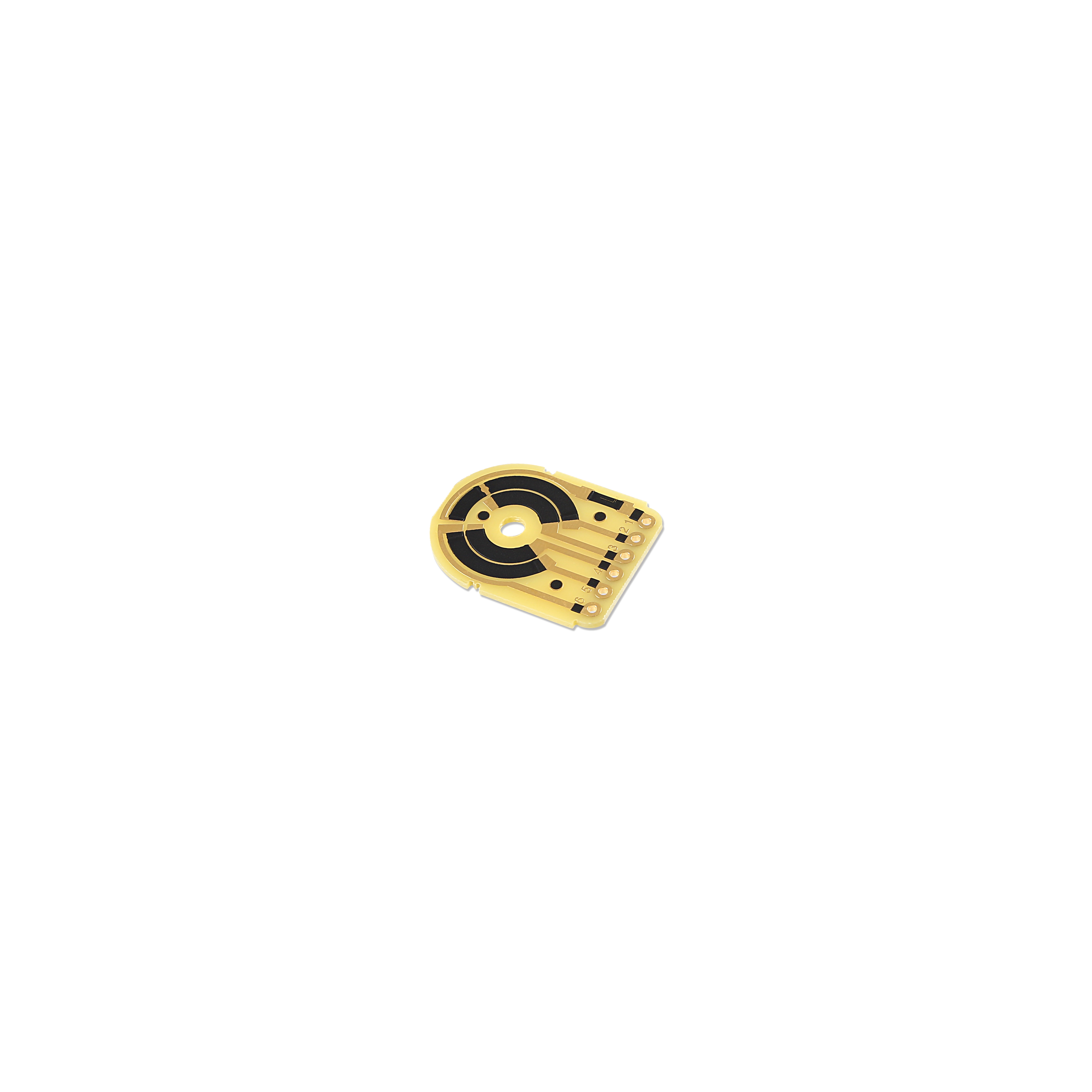

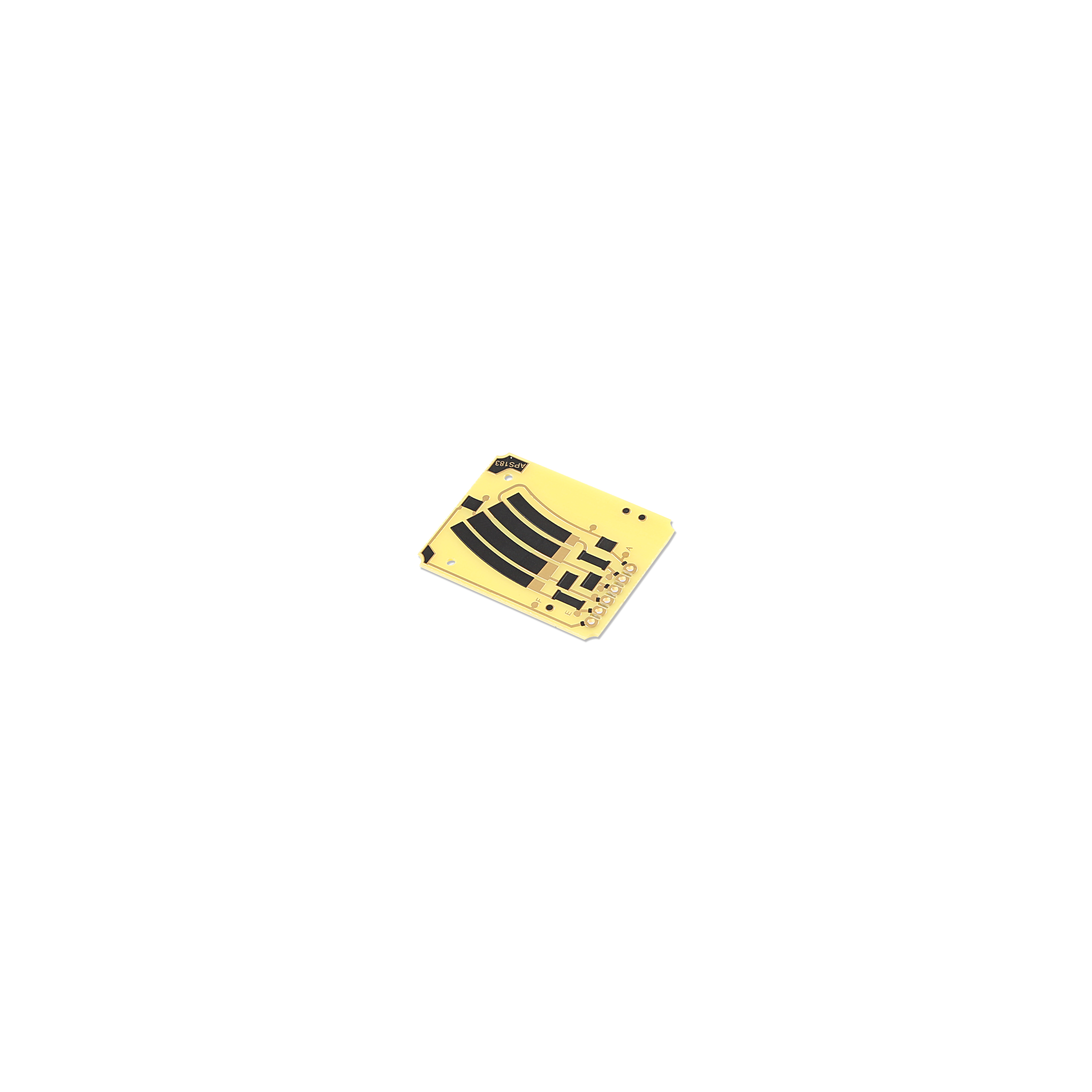

Rigid Thickfilm PCB

No： CRT_TPCB_V01
Base Material： FR-4
Board Thicknes： 1.2mm
Copper Thickness： 14um
Dimension： min28 x max70.4mm
Special handicraft products:： * silver ink
* Control Laser trimmed resistive ink
* At the same time, three kinds of carbon resistance values are controlled, ranging from 10 to 10000 ohm
* Voltage linear curve contro
Application Segment： Potentiometer, oil level gauge

Availability:

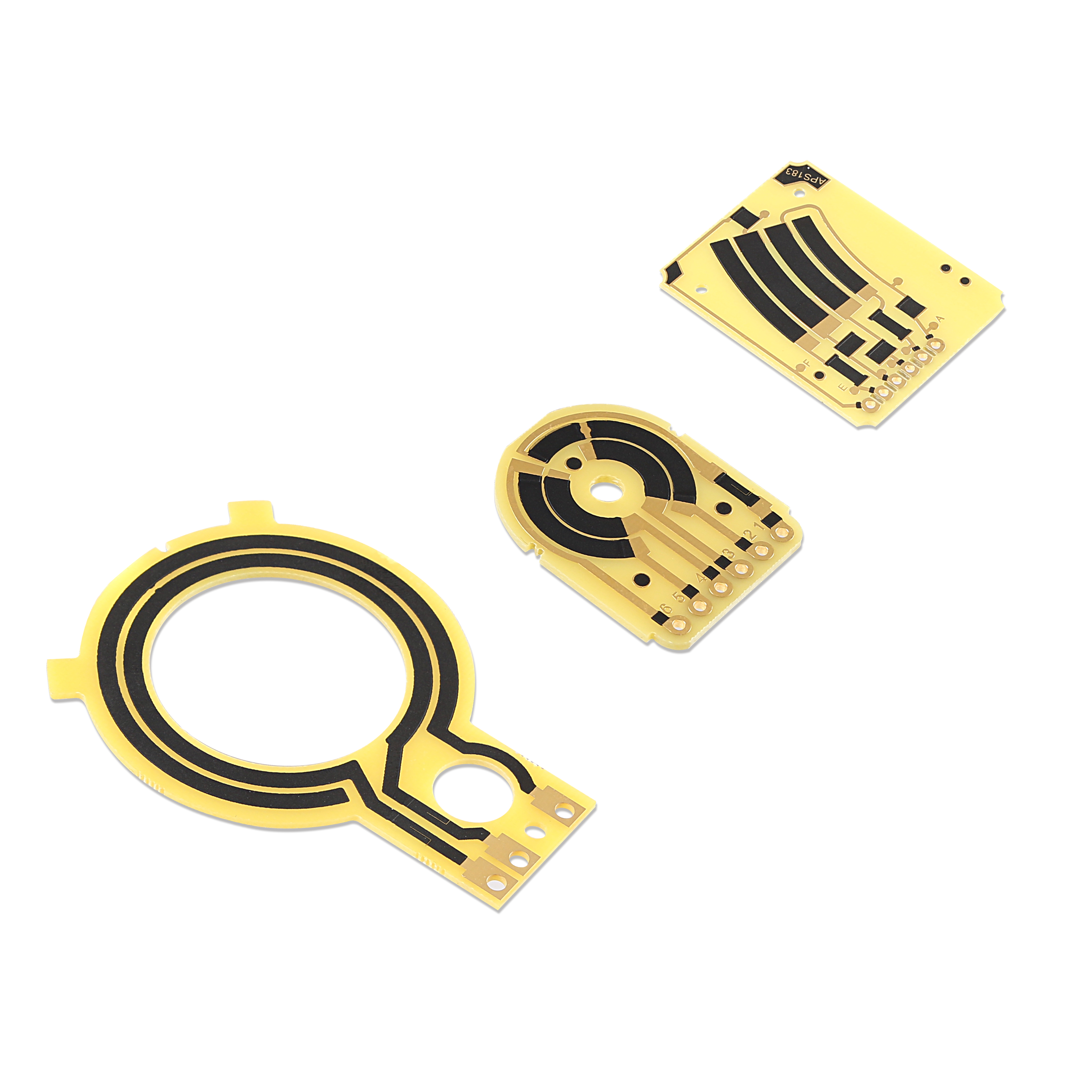

​Rigid Thickfilm PCB

Rigid Thickfilm PCBSpecial Tech.
Place of Origin：China1.Silver Circuit


2.Silver TH


3.High Risitor


4.Could be in a round surface

Brand Name：CRT
Application Segment：Auto,Industrial,Medical,DataCom、Comsumer
Layer Count：1-4L
Matierial：FR4,CEM1,Metal Base
Board Thickness(mm)：0.2mm~3.0mm
Copper Thickness(oz)：0.33oz~2oz
Size(mm)：2mm~500mm
Min. LW/LS(mm)：0.2/0.2
Min. Hole(mm)：0.2
Solder Mask：Green, Black, White...
Surface Finish：ENIG,OSP,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
