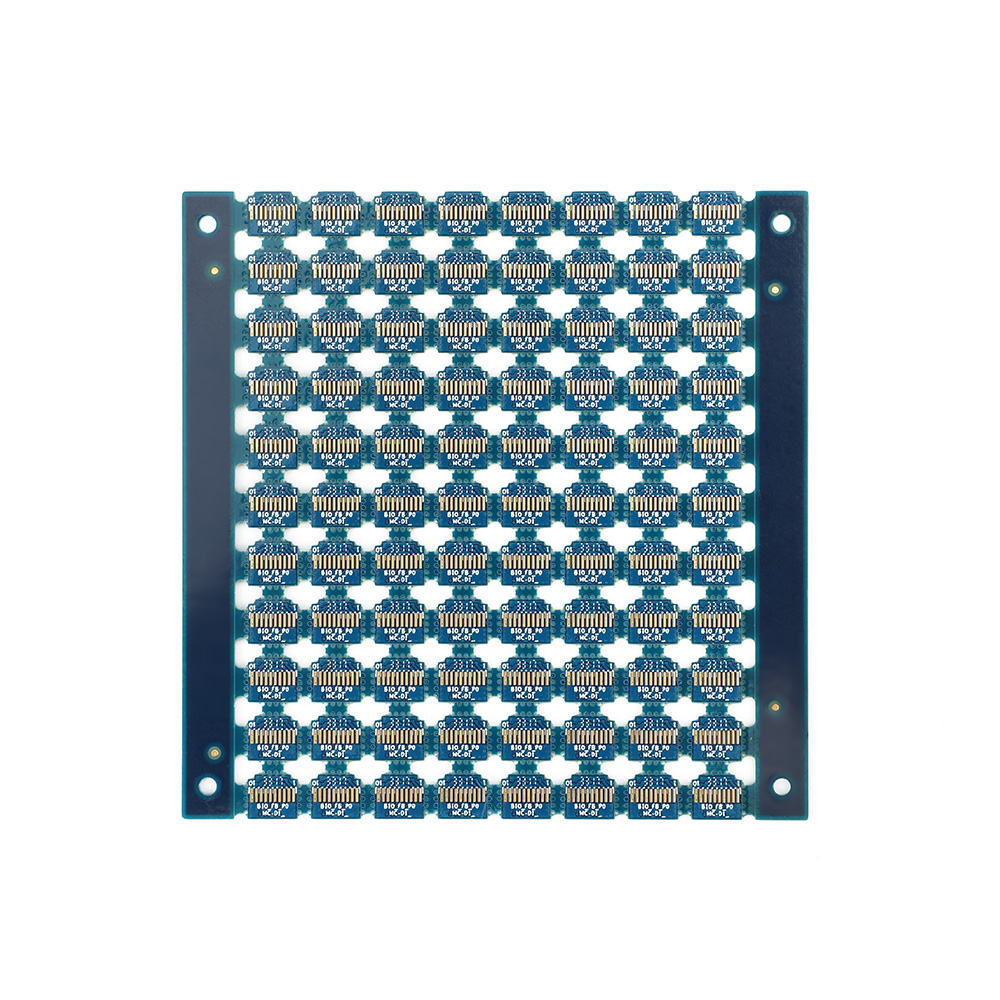

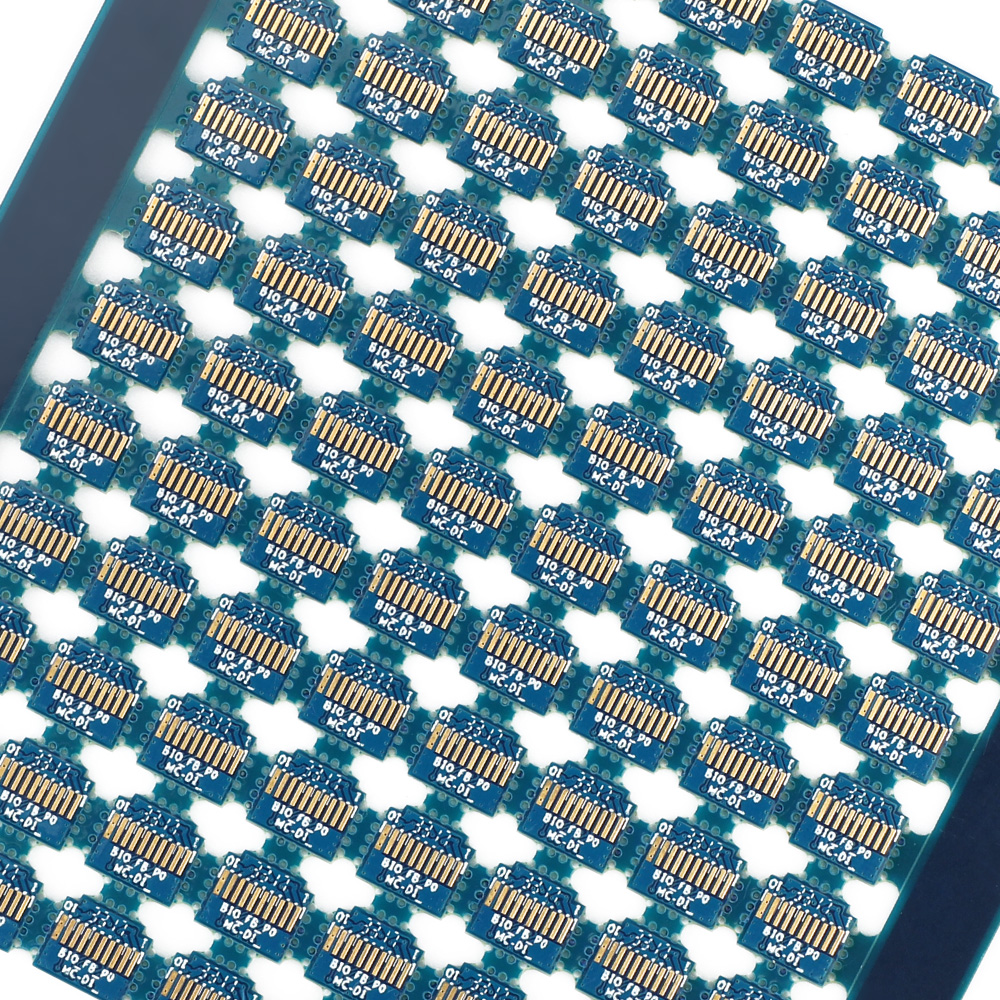

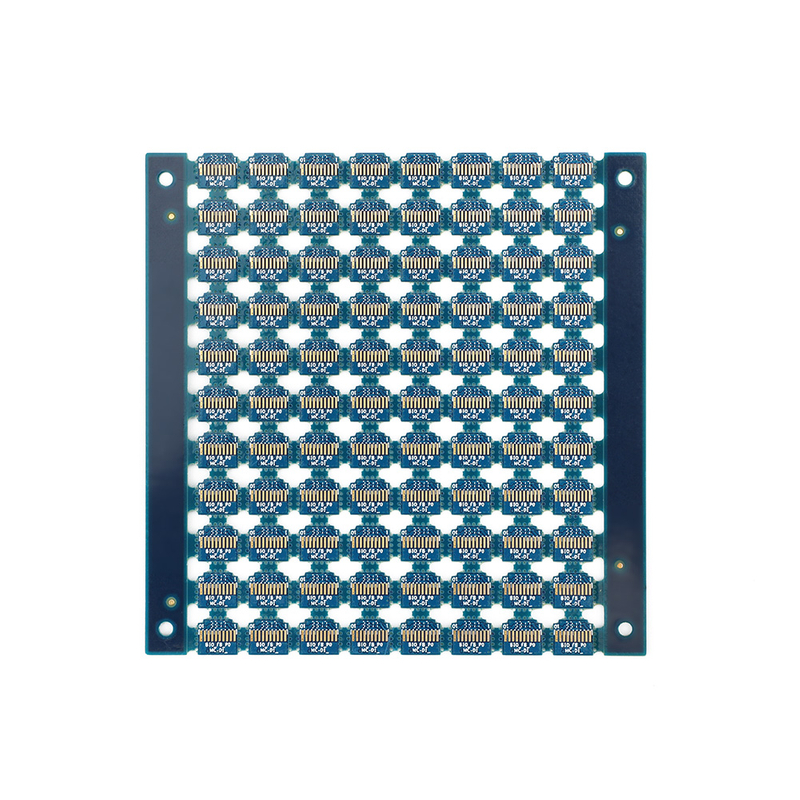

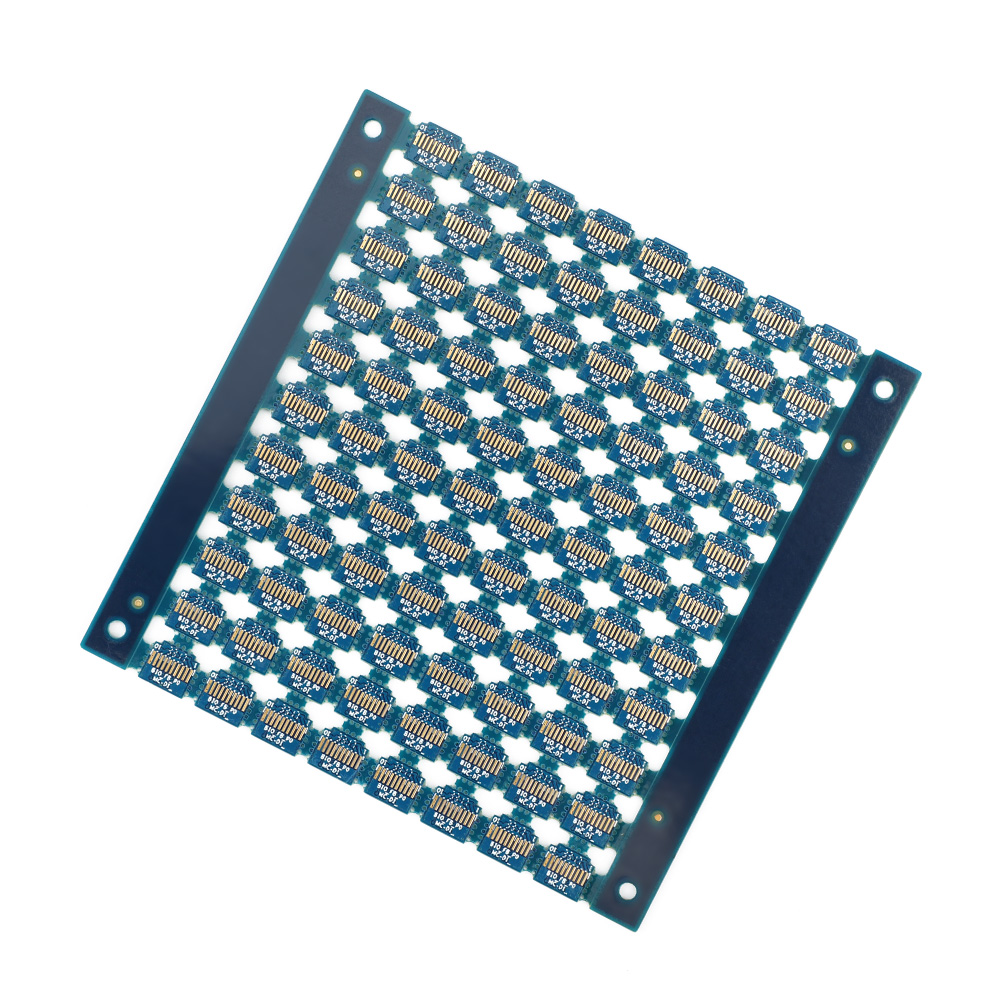

USB PCB

No：CRT_USB_V01
Layer Count: 4L
Base Material： FR4 Tg150
Board Thicknes： 0.6mm
Copper Thickness： 35um
Surface Finish： ENIG（0.05-0.1um）
Single size： 7.6*6.83mm
panel size： 95.08*94.8mm
Special handicraft products:： "*Small size and thin board
*Impedance control"
Application Segment：Auto,Industrial,Medical,Comsumer

Availability:

Product Description

Multi layers PCBSpecial Tech.
Place of Origin：China1.Impedance


2.Via Filling


3.PFH,Backdrill


4.Mix Finishes


5.Cave


6.heatsink


7.ENEPIG

Brand Name：CRT
Application Segment：Auto,Industrial,Medical,DataCom、Comsumer
Layer Count：3~50L
Matierial：FR4 (Tg130~Tg170)
Board Thickness(mm)：0.6mm~10.0mm
Copper Thickness(oz)：Hoz~3oz
Size(mm)：5mm~1200mm
Min. LW/LS(mm)；0.1/0.1
Min. Hole(mm)：0.25
Solder Mask：Green, Yellow, Blue, Black, White...
Surface Finish;ENIG,OSP,HASL,Imm Tin,Imm Silver...
Certificate：RoHS/ISO9001/ISO14001
Service:OEM / DFM
