No： CRT_EQU_V01

Layer Count: 2L

Base Material： FR4 Tg150

Board Thicknes： 1.6mm

Copper Thickness： 35um

Surface Finish： HASL

Single size： 45*110mm

panel size： 120*185mm

Special handicraft products:： *Impedance control

Application Segment： Auto,Industrial,Medical,Comsumer



No： CRT_Aluminum_V02

Layer Count: single

Base Material： MC-Alu (AL5052) Bergquist HPL

Board Thicknes： 1.5mm

Copper Thickness： 70um

Surface Finish： HASL Pb-free

Single size： 58.2*41.6mm

panel size： 307.2*249.2mm*28pcs

Special handicraft products:： *Metal substrate

Application Segment： Auto,Industrial,Medical,Comsumer

No：CRT_MOTORF_V02

Layer Count: 2L

Base Material： FR4 Tg150 + PI

Board Thicknes： Rigid-0.28mm，Flex-0.15mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 122*40.72mm

Special handicraft products:：*Gold finger design at soft board

Application Segment：Auto,Industrial,Medical,Comsumer





No：CRT_COM_V01

Layer Count: 6L

Base Material： FR4 Tg150

Board Thicknes： 1.6mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 146*105mm

panel size： 146*117mm*1pcs

Special handicraft products:：*Impedance control

Application Segment：Auto,Industrial,Medical,Comsumer

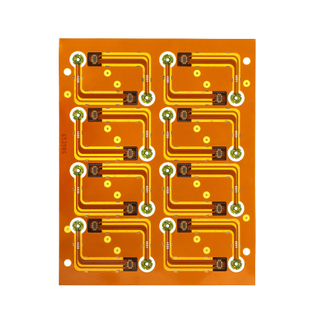

No：CRT_MOTO_V01

Layer Count: 2L

Base Material： PI

Board Thicknes： 0.22mm

Copper Thickness： 35um

Surface Finish： ENIG（≥0.05um）

Single size： 22.3*28.6mm

Panel size： 118.84*24.42mm

Special handicraft products:：*FR4 reinforcement&PI reinforcement

Application Segment：Auto,Industrial,Medical,Comsumer

No：CRT_MED_V01

Layer Count: 2L

Base Material： FR4 Tg150

Board Thicknes： 1.55mm

Copper Thickness： 35um

Surface Finish： HASL

Single size： 86.89*73.20mm

panel size： 191.78*172.8mm

Special handicraft products:：*Impedance control

Application Segment：Auto,Industrial,Medical,Comsumer

No：CRT_USB_V01

Layer Count: 4L

Base Material： FR4 Tg150

Board Thicknes： 0.6mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 7.6*6.83mm

panel size： 95.08*94.8mm

Special handicraft products:： "*Small size and thin board

*Impedance control"

Application Segment：Auto,Industrial,Medical,Comsumer



No：CRT_IND2_V01

Layer Count: 8L

Base Material： FR4 Tg150

Board Thicknes： 1.6mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 68*49mm

panel size： 68*59mm

Special handicraft products:：*Impedance control

Application Segment：Auto,Industrial,Medical,Comsumer



No：CRT_SMART_V01

Layer Count: 2L

Base Material： FR4 Tg150 + PI

Board Thicknes： Rigid-0.8mm，Flex-0.2mm

Copper Thickness： 35um

Surface Finish： ENIG（0.05-0.1um）

Single size： 23.6*39.8mm

Special handicraft products:： Gold finger design at soft board

Application Segment： Auto,Industrial,Medical,Comsumer

No： CRT_CARPCB_V01

NO: CRT_quick charge_v01

Input voltage range: 100-240V

Output voltage/current/power: 5.0V DC/3.0A/15.0W

                                                   9.0V DC/2.22A/20.0W

                                                   12.0V DC/1.67A/20.0W

Charging interface type: Type-C

size：L 45mm*w40mm*H 26mm

Layer Count: 8L

Base Material： FR4 Tg150

Board Thicknes：1.6mm

Copper Thickness：35um

Surface Finish：ENIG（0.05-0.1um）

Single size：68*49mm

panel  size：68*59mm

Special handicraft products:： *Impedance control

Application Segment： *Auto,Industrial,Medical,Comsumer
